2.4.2 Discovering networked devices

You can search for devices connected to a network, and register discovered devices as management targets of JP1/IT Desktop Management 2.

You can search a specific range of network addresses for devices. You can register discovered devices such as computers that require security management as management targets, and devices such as routers that do not require security management as exclusion targets.

As part of the search process, you can automatically register discovered devices as management targets, and automatically distribute the agent program to discovered computers. You can also configure the system to notify the administrator by email when a new device is discovered.

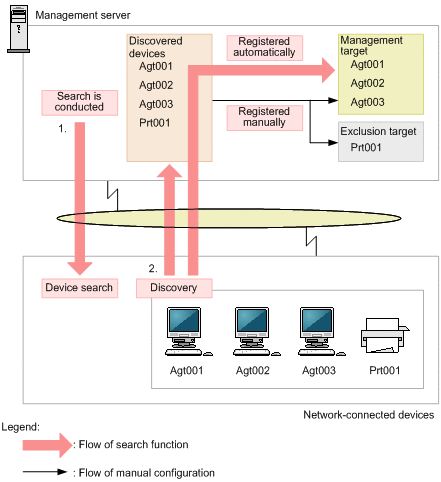

The following figure shows an overview of searching for devices and registering discovered devices as management targets.

[Figure]

On the management server, search for devices on a routine basis by specifying a network range to search, a discovery schedule, and other parameters.

Important

To conduct an intensive search for devices in the network by specifying a discovery period, specify 50,000 or less IP addresses in the discovery range. If more than 50,000 IP addresses are contained, the search might stop.

If you discover more than 50,000 IP addresses, disable the Intensive Discovery option.

Tip

Management servers can connect to a maximum of 10 devices at once during a search.
Discovered devices can be registered as management targets automatically, or set aside to be manually registered as a management target or exclusion target at a later time.

Related Topics:

Organization of this subsection

(1) Discovery conditions
(2) Estimating data traffic during network searches

(1) Discovery conditions

Several conditions must be met before you can discover devices. Each discovery method has different conditions.

Discovering devices in Active Directory

The correct settings must be specified for the connection-target Active Directory server in the Active Directory view under General in the Settings module.

Discovering networked devices

The following conditions must be satisfied:

If a device to be discovered is in the same segment as the management server, the device must respond to ARP requests from the management server.
If a device to be discovered is in a different segment from the management server, the device must respond to ICMP ECHO (ping) from the management server.
Devices must have IP addresses assigned
The discovery range must be set correctly
Authentication information must be set correctly

You can set the discovery range and authentication information in the IP Address Range view accessed by clicking Configurations under Discovery in the Settings module.

The prerequisites for a network environment in which devices can be discovered are as follows:

The network supports TCP/IP communication and the firewall settings and other parameters permit communication through chosen ports.
The management server and managed devices are able to communicate with each other via ICMP.

Important: Virtual machines are treated as separate computers for discovery purposes. The guest OS of a virtual machine must be assigned its own IP address and MAC address separate from those assigned to the host OS.

Important: You cannot manage agentless devices in a NAT environment.

Important: By default, computers running Windows Server 2019, Windows Server 2016, Windows 10, Windows 8.1, Windows 8, Windows Server 2012, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003 (Service Pack 2 or later), or Windows XP (Service Pack 2 or later) cannot use ICMP due to Windows firewall settings. To use ICMP in the discovery process, ICMP must be enabled in the configuration of the computer being discovered.

Important: Do not specify a discovery range that includes a loop-back address or broadcast address. Searches whose discovery range contains such an address might discover devices wrongly.

Tip: You can discover devices that use a wireless LAN, WAN, or VPN, provided that the network environment meets the above prerequisites.

You can automatically distribute the agent program to discovered computers that are running Windows. For details about the conditions that must be met for this to occur, see 2.5.2 Criteria for agent distribution to online-managed computers.

To Page Top

(2) Estimating data traffic during network searches

The following shows general guidelines for estimating how much traffic is generated by a network search.

When using SNMP authentication: If SNMP authentication is successful, approximately 2 KB of data is sent per device.
When using Windows administrative shares: If login to the Windows administrative share is successful, approximately 2.5 MB of data is sent per device. Agent distribution uses approximately 80 MB of data traffic. The data traffic varies depending on the agent configuration.
