5.15.3 Login authentication using the JP1/Base authentication server

(1) When not linking with the specific JP1 product

Login authentication uses the user information managed by the JP1/Base authentication server. In this case, JP1/Base is used for user authentication. However, because the user information and access permissions displayed in the window are managed by using information registered in the Item management database, the user information registered in the JP1/Base authentication server must be registered in the Item management database.

To Page Top

(2) When linking with the specific JP1 product

The user information managed by the JP1/Base authentication server is used for login authentication of JP1/Service Support and authentication of linkage users. By using the JP1/Base authentication server, users can launch the window of the specific JP1 product from JP1/Service Support, or launch the window of JP1/Service Support from the specific JP1 product, without the need of login authentication (Single Sign-On).

Because the user information and access permissions displayed in the window are managed by using information registered in the Item management database, the user information registered in the JP1/Base authentication server must be registered in the Item management database.

The following figure shows an example of login authentication using the JP1/Base authentication server when linking with the specific JP1 product.

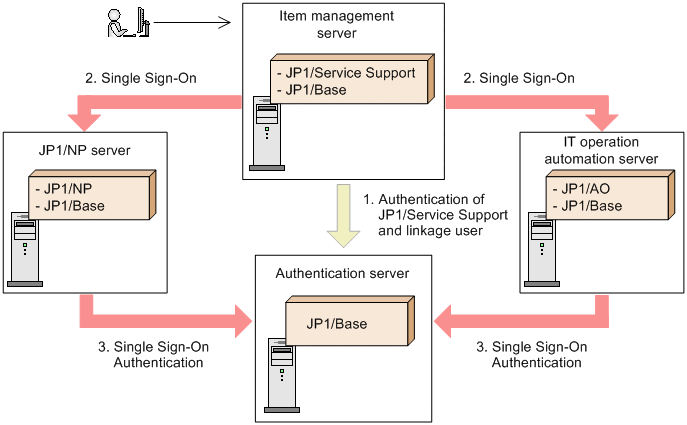

Figure 5‒15: Example of login authentication using the JP1/Base authentication server (when linking with the specific JP1 product)
