5.9 Display/Edit Profiles window

The Display/Edit Profiles window is used to display profile information that is valid in JP1/Base or for remote monitoring. The window is also used to view or edit settings files and definition files saved on the IM Configuration Management server.

The Display/Edit Profiles window has two pages: Valid Configuration Information and Configuration File. Each page can be opened by choosing the corresponding button. For details about the Valid Configuration Information page, see 5.9.1 Valid Configuration Information page. For details about the Configuration File page, see 5.9.2 Configuration File page.

The following figure shows an example of the Display/Edit Profiles window.

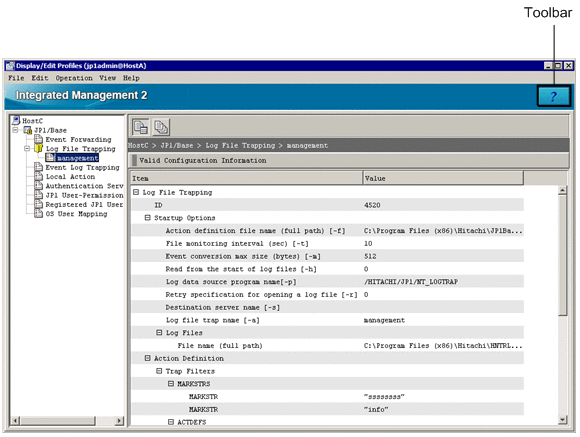

Figure 5‒21: Display/Edit Profiles window

Toolbar

(Help button): Displays Help.

Valid Configuration Information button

Clicking this button opens the Valid Configuration Information page. This page displays the configuration information that is valid in JP1/Base or for remote monitoring.

The settings information for the following functions is displayed:

Event forwarding
Log file trapping
Event log trapping
Local action
User management, including the authentication server, user permissions, user registration, and user mapping

Configuration File button

Clicking this button opens the Configuration File page. The Configuration File page is used to display or edit the configuration file or definition files saved on the IM Configuration Management server.

The following configuration file and definition files are displayed and can be edited:

Transfer configuration file
Log file-trap action definition file
Log file-trap startup definition file
Event log-trap action definition file
Local action execution definition file

The following table describes the menu items available from the menu bar of the Display/Edit Profiles window.

Table 5‒21: Menu items available from the menu bar of the Display/Edit Profiles window
Menu	Command	Description
File	Close	Closes the Display/Edit Profiles window.
Edit	Exclusive Editing Settings	Edits the configuration file in exclusive mode.
	Release Exclusive Editing	Releases exclusive editing of the configuration file.
	Save Configuration File	Saves the configuration file to the IM Configuration Management server.
	Copy	Copies the data that is selected in the node information display area for the configuration file. The user does not need to acquire exclusive editing rights before executing this command.
	Cut	Copies the data that is selected in the node information display area for the configuration file, and deletes the selected data. The user must acquire exclusive editing rights before executing this command.
	Paste	Pastes the copied or cut data to the node information display area for the configuration file. The user must acquire exclusive editing rights before executing this command.
	Add Profile	Adds a profile for log file trapping.
	Delete Profile	Deletes a profile for log file trapping.
Operation	Collect Profiles	Acquires the profile of the specified node from the host of an agent.
	Save/Apply Profiles	Saves the contents of the configuration file residing on the IM Configuration Management server to the agent and applies the contents.
	Save on the Server	Saves the configuration file to the IM Configuration Management server.
	Apply by Reloading	Applies the contents of the configuration file residing on the IM Configuration Management server to the agent and reloads the contents.
	Apply by Restarting	Applies the contents of the configuration file by restarting log file trapping. This command can be used only when a log file trap name for log file trapping is selected.
	Apply by Sending File	Applies the contents of the configuration file by sending the file to JP1/Base. If the version of JP1/Base on the agent is earlier than 11-10, this command can be used only when a monitoring name for which a cluster ID has been specified is selected.
	Rebuild Profile Tree	Acquires the profile list again from the agent, and re-displays the list displayed in the tree display area.
	Start Process	Starts log file trapping of an agent.
	Stop Process	Stops log file trapping of an agent.
View	Word Wrap	When the Valid Configuration Information area is displayed in the Display/Edit Profiles window, specifies whether to display all setting items in the window.
Help	Help	Displays Help.
	Help Contents	Displays the Help contents.
	Version Information	Displays the version information of IM Configuration Management - View.

When the profile list is collected from the agent, if the service corresponding to the profile information is not running, the profile information displayed in the tree display area becomes unavailable, and cannot be selected. The log file trapping function displays only currently running profiles. Note, however, that the function displays all profiles regardless of whether the functions for profiles are active if the version of JP1/Base is 09-10 or later.

For example, if an event service has not started, Event Forwarding Information in the profile list is unavailable and cannot be selected.

To select an unavailable profile, the user must start the corresponding service on the agent, choose the Operation menu and then choose Rebuild Profile Tree. If the log file trapping function on the agent has been started, Rebuild Profile Tree can be executed.
