5.9.1 Valid Configuration Information page

The Valid Configuration Information page of the Display/Edit Profiles window displays the profile information that is valid in JP1/Base or for remote monitoring. This page has a tree display area and a node information display area. The tree display area displays in a tree structure the profile information that is valid in for JP1/Base or for remote monitoring. The node information display area displays the detailed information about nodes displayed in the tree display area.

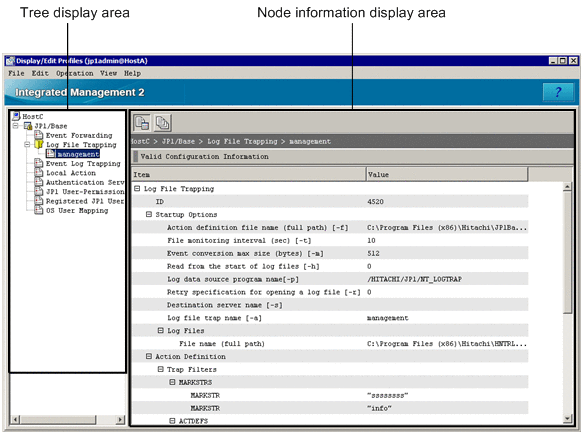

The following figure shows an example of the Valid Configuration Information page.

Figure 5‒22: Valid Configuration Information page

[Figure]

Note that the following description is based on the agent configuration. The items displayed in the page for the remote monitoring configuration might be different from the items described below.

Tree display area

Displays the profile information that is valid in JP1/Base or for remote monitoring in a tree structure. The following describes the items displayed in the tree display area.

Table 5‒22: Items displayed in the tree display area (Valid Configuration Information page)

Item

Description

Plus sign (+) icon

A plus sign (+) icon is displayed when there are files under the setting name.

If the plus sign (+) icon is clicked, the setting name is expanded to show the files.

Minus sign (-) icon

A minus sign (-) icon is displayed when there are files under the setting name.

If the minus sign (-) icon is clicked, the expanded setting name is collapsed to hide the files.

[Figure]

Indicates a host name.

[Figure]

Indicates a product name.

[Figure] or [Figure]

Indicates a setting name. If there are files under the setting name, [Figure] is displayed with a plus sign (+) or a minus sign (-) icon on the left.

If there are no files, [Figure] is displayed.

[Figure]

Indicates a file name.

Node information display area

The node information display area on the Valid Configuration Information page displays valid configuration information about the display item selected in the tree display area.

The following describes the items displayed for each function selected in the tree display area.

Organization of this subsection

(1) Event Forwarding

The following table describes the items displayed in the Valid Configuration Information area when Event Forwarding is selected.

Table 5‒23: Items displayed in the Valid Configuration Information area (Event Forwarding)

Item name

Level 1

Level 2

Level 3

Level 4

Level 5

Event Forwarding

Event Server Index

Event server

--

--

Forwarding Settings File

Forwarding filters

Filter

Destination (host)#

Conditions#

Suppression Filters

Filter Information

Suppression ID

Unit Time (sec)

Threshold-based (count)

Check Times (to start suppression)

Check Times (to stop suppression)

Suppression Destination

Conditions

Legend:

--: Not applicable

#

When the to-upper format is used in the forwarding settings file (forward) and no upper-level host exists, the transfer conditions are disabled and not displayed because there is no destination host.

The file displayed for Event Forwarding is the forwarding settings file (forward). If the user clicks this file, the current setting values are displayed. For details about this file, see the description of the forwarding settings file in the JP1/Base User's Guide.

(2) Log File Trapping

The following figure shows the items displayed in the Valid Configuration Information area when the profile information for the log file trap is selected.

Table 5‒24: Items displayed in the Valid Configuration Information area (Log File Trapping)

Item name

Level 1

Level 2

Level 3

Level 4

Level 5

Log File Trapping

ID

--

--

--

Startup options

Action definition file name [-f]

--

--

File monitoring interval (sec) [-t]

--

--

Event conversion max size (bytes) [-m]

--

--

Read from the start of log files [-h]

Not specified: 0

Specified: 1

--

--

Display command name (UNIX only) [-n]

--

--

Log data source program name [-p]

--

--

Retry specification for opening a log file [-r]

Not specified: 0

Specified: 1

--

--

Destination server name [-s]

--

--

Log file trap name [-a]

--

--

Use option [-u]

--

--

Specification for UNICODE file monitoring (Windows only) [-g]

  • In JP1/Base version 10-10 and earlier:

    Not specified: 0

    Specified: 1 (operates in UTF-16 mode)

  • In JP1/Base version 10-50 and later:

    Not specified: Blank

    -g or -g UTF-16 is specified: UTF-16

    -g UTF-8 is specified: UTF-8

--

--

Specification of UNICODE file byte order (Windows only) [-b]

--

--

Monitored host [-o]

--

--

Regular expression type [-R]

basic: JP1-specific regular expression

extended: Extended regular expression

--

--

Log files

File name (full path)#1

--

Action Definition

Trap filters

MARKSTRS

MARKSTR

ACTDEFS

ACTDEF

File type

--

--

Record type

--

--

Number of header lines

--

--

Header size (bytes)

--

--

Number of retries

--

--

Retry interval (sec)

--

--

Number of held JP1 events

--

--

Held-events pass specification

--

--

Number of retries for opening a log file

--

--

Retry interval for opening a log file (sec)

--

--

Number of retries for reading a log file

--

--

Number of retries (file monitoring)

--

--

JP1 event for UPD type#2

--

--

JP1 event extended-attribute options

--

--

Legend:

--: Not applicable

#1:

When a Windows host is being monitored remotely, the paths of monitoring log files are displayed in the same format as the startup options in the Configuration File page.

Actual path of a monitoring log file:

\\host-name\shared-folder-name\file-name

Value to be specified as the path of the monitoring log file:

\shared-folder-name\file-name

Examples of displayed paths are as follows:

Example 1: \share\logdir\test01.log \share\logdir\test02.log

Example 2: "\share\log dir\test01.log" "\share\log dir\test02.log"

#2:

This item is displayed if the version of JP1/IM - Manager is 10 or later and the version of JP1/Base on the agent is 10 or later.

The following describes the files that are displayed for Log File Trapping, and the manuals that provide detailed information about the files.

(3) Event Log Trapping

The following figure shows the items displayed in the Valid Configuration Information area when the profile information of the event log trap is selected.

Table 5‒25: Items displayed in the Valid Configuration Information area (Event Log Trapping)

Item name

Level 1

Level 2

Level 3

Level 4

Level 5

Event Log Trapping

Action Definition

Trap filters

Filter

Trap name

Log type

Event ID

Conditions

Destination event server name

--

Number of retries

--

Retry interval (sec)

--

Monitoring interval (sec)

--

Matching level

--

Filter check level

--

JP1 event notifications

--

JP1 event extended-attribute options

--

Legend:

--: Not applicable

The following describes the files that are displayed for Event Log Trapping, and the manuals that provide detailed information about the files.

(4) Local Action

The following figure shows the items displayed in the Valid Configuration Information area when the profile information of the local action is selected.

Table 5‒26: Items displayed in the Valid Configuration Information area (Local Action)

Item name

Level 1

Level 2

Level 3

Level 4

Level 5

Level 6

Local Action

Execution Definition

Common Block

JP1 user name

--

--

Event ID issuing specification

--

--

Control option string

--

--

Action Blocks

Action Block

Action name

--

Event filter conditions

Conditions

Command

--

Event ID issuing specification

--

Suppression time

--

JP1 user name

--

Environment-variable file name

--

Command option

--

Legend:

--: Not applicable

The file displayed for Local Action is the local action execution definition file (jbslcact.conf). If the user clicks this file, the current setting values are displayed. For details about this file, see the description of that file in the JP1/Base User's Guide.

(5) Authentication Server

The following are the items displayed in the Valid Configuration Information area when the profile information of the authentication server is selected:

Authentication server information is set by using the jbssetupsrv command (Windows) or the jbssetusrsrv command (UNIX). For details about these commands, see the relevant descriptions in the JP1/Base User's Guide.

(6) JP1 User-Permissions Level

The following figure shows the items displayed in the Valid Configuration Information area when the profile information of the JP1 user-permission level is selected.

Table 5‒27: Items displayed in the Valid Configuration Information area (JP1 User-Permissions Level)

Item name

Level 1

Level 2

Level 3

Level 4

Level 5

JP1 User-Permission Level

User permissions level

Permissions Level

JP1 user name

--

Authority level for JP1 resource groups

Resource groups

Permissions levels

Legend:

--: Not applicable

The file displayed for JP1 User-Permissions Level is the user permission level file (JP1_UserLevel). If the user clicks this file, the current setting values are displayed. For details about the user permission level file, see the description of that file in the JP1/Base User's Guide.

(7) Registered JP1 Users

The following figure shows the items displayed in the Valid Configuration Information area when the profile information of the JP1 user registration is selected.

Table 5‒28: Items displayed in the Valid Configuration Information area (Registered JP1 Users)

Item name

Level 1

Level 2

Level 3

Registered JP1 Users

JP1 Users

User name

Information for Registered JP1 User is set by using the jbsadduser command. For details about the jbsadduser command, see the description of that command in the JP1/Base User's Guide.

(8) OS User Mapping

The following are the items displayed in the Valid Configuration Information area when the profile information of the OS user mapping is selected:

The file displayed for OS User Mapping is the user mapping definition file (jp1BsUmap.conf). If the user clicks this file, the current setting values are displayed. For details about the user mapping definition file, see the description of that file in the JP1/Base User's Guide.
