5.1.3 Business Group page

The Business Group page of the IM Configuration Management window displays business groups and the configuration of monitoring groups in each business group. The Business Group page has a tree display area, which displays the configuration of business groups in a tree structure, and a node information display area, which displays detailed information about the node selected in the tree display area.

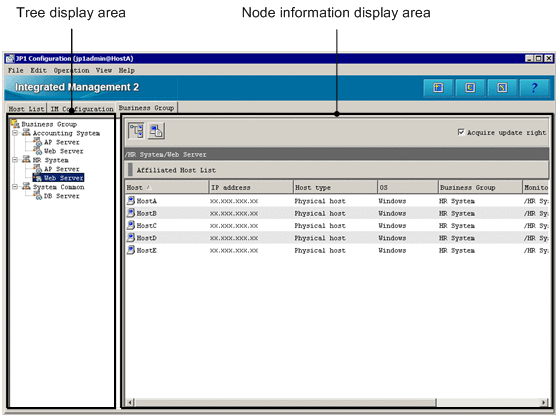

Figure 5‒12: Example of the Business Group page

[Figure]

Tree display area:

Displays business group nodes and the monitoring group nodes under the business group nodes in a tree structure. The following describes the items displayed in the tree display area.

Table 5‒12: Items displayed in the tree display area (Business Group page)

Display Item

Node type

Description

[Figure]

Root node

Node displayed as the root of the tree for convenience

[Figure]

Business group node

Node indicating a user-defined business group

[Figure]

Monitoring group node

Node indicating a monitoring group (a group of hosts) in a business group

Node information display area:

The node information display area on the Business Group page displays information about the node selected in the tree display area. If the selected node is a business group or monitoring group, the full path to the node is also displayed. The display mode of the node information display area can be switched by choosing either of the following buttons:

[Figure] Affiliated Host List

While this button is selected, a list of hosts that the selected business group or monitoring group belongs to is displayed.

If a business group has been selected, a list of all hosts that belong to the business group is displayed. If a monitoring group has been selected, the hosts that directly belong to only the monitoring group are displayed. The hosts that directly belong to the monitoring group and also belong to other monitoring groups are not displayed.

The items displayed in this display mode are the same as the items displayed in the Lower Host Information area on the Host List page. For details about the items displayed the Lower Host Information area, see 5.1.1(1) Lower Host Information.

[Figure] Basic Information

While this button is selected, basic information about the selected business group or monitoring group is displayed.

The items displayed as basic information depend on the selected node.

Table 5‒13: Items displayed as basic information

Item

Description

When a business group node is selected

When a monitoring group node is selected

Business group name

The name of the business group is displayed.

Y

N

Monitoring group name

The name of the monitoring group is displayed.

N

Y

Assigned JP1 resource group name

The JP1 resource group name assigned to the business group is displayed.

Y

N

Business group information applied status

Editing, Applied, or Application failed is displayed as the status of editing for all business groups and monitoring groups displayed in the IM Configuration Management window.

If the status is Editing, the [Figure] icon also appears. This icon indicates that changes to the root node have not been applied yet.

Y

N

Business group information applied date

The last date and time at which changes were applied is displayed.

Y

N

Comment

The comment on the business group or monitoring group is displayed.

Y

Y

Legend:

Y: Can be displayed.

N: Cannot be displayed.

Acquire update right

When the user selects the Acquire update right check box, the user can edit the configuration of business groups and monitoring groups. When a user has acquired the update permission and edits the configuration, other users are unable to edit the configuration.
