JP1 Version 12 JP1/Integrated Management 2 - Manager GUI Reference


5.1.1 Host List page

The Host List page in the IM Configuration Management window lists the hosts registered in IM Configuration Management. The Host List page has two parts: a tree display area in which the hosts are listed in a tree structure, and a node information display area in which detailed information about the nodes displayed in the tree is displayed.

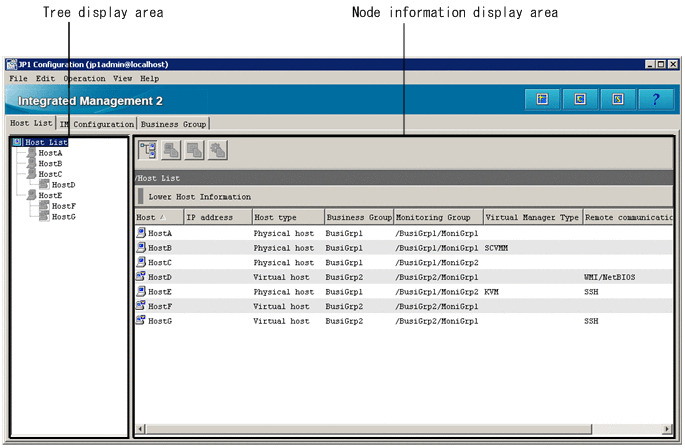

Figure 5‒2: Host List page

[Figure]

Tree display area

Lists the hosts registered in the system hierarchy in a tree structure. The following table describes the items displayed in the tree display area.

Table 5‒2: Items displayed in the tree display area (Host List page)

Display item

Description

[Figure]

Indicates a group.

When a group is selected, the lower-host information for the group is displayed in the node information display area. If there are no lower hosts, nothing is displayed in the node information display area.

[Figure]

Indicates a host. When a host is selected, detailed information about the host is displayed in the node information display area.

[Figure]

Indicates a virtual host. When a virtual host is selected, detailed information about the virtual host is displayed in the node information display area.

The virtual-host tree is always expanded.

Node information display area

The node information display area on the Host List page displays information about the node item selected in the tree display area. The user can change the information that is displayed by clicking one of the following four buttons below.

[Figure] (Lower Host Information button)

Lists the hosts positioned lower than the selected host.

[Figure] (Basic Information button)

Displays the basic information about a host.

[Figure] (Product Information button)

Displays information about the product installed on the host.

[Figure] (Service Information button)

Displays information about the services running on the host.

Whether information can be displayed depends on the type of the host selected in the tree display area. The following table describes the relationship between host type and information that can be displayed.

Table 5‒3: Types of hosts and information displayable for each (Host List page)

Type of host

Lower host information

Basic information

Product information

Service information

Group

Y

N

N

N

Host

Y#1

Y#2

Y#2

Y

Virtual host

N

Y#2

Y#2

Y

Legend:

Y: Can be displayed.

N: Cannot be displayed.

#1: Displayed if there are lower virtual hosts.

#2: Displayed if host information has already been collected.

Organization of this subsection

(1) Lower Host Information

This area displays the full path name of the node selected in the tree display area, and the hosts positioned lower than the host selected in the tree. For example, if the user selects the upper-level host of a virtual host in the tree (VMM host), the virtual host is displayed. If Host List at the top of the tree is selected, all hosts are displayed.

The following figure shows an example of the window displayed when the Lower Host Information button is clicked.

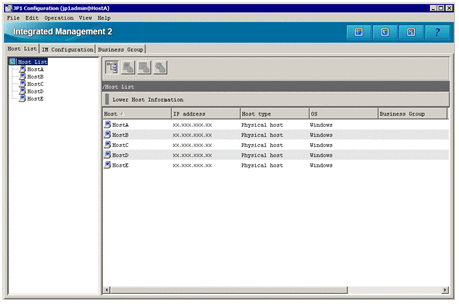

Figure 5‒3: Host List page displayed when the Lower Host Information button is clicked

[Figure]

Lower Host Information

The items to be displayed in the Lower Host Information area, such as Host, IP address, and Host type can be selected from the menu displayed when the user right-clicks an item name.

The list in this area can be sorted based on an item (column) by clicking the header of the column. Sort the list if it is difficult to find the desired host.

When the header of a column is clicked once, the Δ icon is displayed beside the title. When the header of a column is clicked once again, the icon changes to [Figure]. These icons alternate every time the header is clicked. The icon displayed for a column disappears when the header of another column is clicked, in which case, the list is re-sorted based on the other column.

  • The Δ icon means that the list is sorted based on the column in ascending order.

  • The [Figure] icon means that the list is sorted based on the column in descending order.

The following table describes the items that can be displayed in the Lower Host Information area.

Table 5‒4: Items displayable in the Lower Host Information area

Item

Displayed information

Host#1, #2

The name of a managed host.

Example: HostA

IP address#1

The managed host's IP address resolved on the manager host.

Example: 10.208.40.40

Example: 2001:db8::28

Host name list

A list of managed hosts to be managed and their alias names.

Example: HostB, HostC

Actual host name

The name actually specified for the managed host.

Example: HostA

Host type#1

One of the following four host types:

  • Physical host

  • Virtual host

  • Logical host

  • Unknown

Active host#3

The name of the physical host that is the active logical host.

Example: HostA

Standby host#3

The name of the physical host that is the standby logical host.

Example: HostA

VMM host#4

The name of the host on which VMM is running.

Example: HostA

OS#1

One of the following five OS names which is used on the managed host:

  • Windows

  • Linux

  • AIX

  • SunOS

  • HP-UX

Collection date/time

The date and time that the host information was last collected.

Example: 2008/01/14 12:34:14

Configuration type

One of the following four IM configuration types:

  • Integrated manager

  • Base manager

  • Relay manager

  • Agent

Collection status

One of the following four types of host information collection status:

  • Not collected

  • Collected

  • Collection failed

Configuration application date/time

The date and time at which the system hierarchy was applied on the manager host.

This item is updated to the date and time at which the system hierarchy was applied when the configuration distribution succeeded.

For hosts to which the differential distribution functionality did not distribute configuration definition information, this item is also updated to the date and time at which the system hierarchy was applied when the configuration distribution succeeded.

Example: 2008/01/14 12:34:14

Comment#1

A comment.

Example: HQ server

Virtual Manager Type

The type of the virtualization configuration management product.

For virtualization system management hosts:
  • vCenter

  • JP1/SC/CM

  • SCVMM

  • HCSM

For VMM hosts:
  • ESX

  • Hyper-V

  • KVM

  • Virtage#5

Remote communication type

One of the following remote communication types:

  • WMI/NetBIOS

  • SSH

  • Blank

Business Group

Business group information.

Monitoring Group

Monitoring group information.

#1: This item is displayed by default.

#2: This item cannot be hidden.

#3: This item is displayed only if the host type is Logical host.

#4: This item is displayed only if the host type is Virtual host.

#5: Virtage indicates the Hitachi Compute Blade logical partitioning feature.

(2) Basic Information

This area displays the full path name, basic information, and detailed information for the host selected in the tree display area. The following figure shows an example of the window displayed when the Basic Information button is clicked.

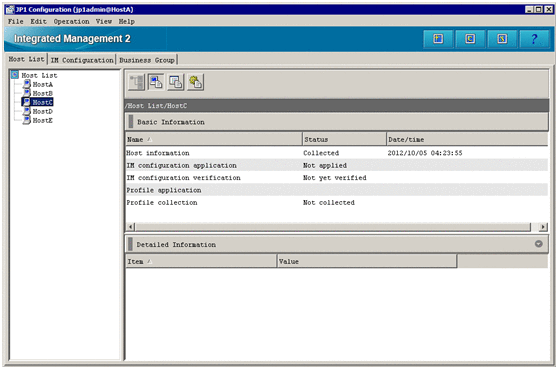

Figure 5‒4: Host List page displayed when the Basic Information button is clicked

[Figure]

Basic Information

The items to be displayed in the Basic Information area, such as Name, Status, and Date/time, can be selected from the menu displayed when the user right-clicks an item name.

The following table describes the items that can be displayed in the Basic Information area.

Table 5‒5: Items displayable in the Basic Information area

Item

Displayed information

Name#1, #2

The following:

  • Host information

  • IM configuration application

  • IM configuration verification

  • Profile collection

  • Profile application

  • Virtualization Configuration information#3

  • Remote monitoring settings#4

Status#1

The status after the collection, application, or verification of information.

For Host information:

Collected, Not collected, or Collection failed is displayed as the status of host information collection.

For IM configuration application:

Applied, Not applied, or Application failed is displayed as the status of system hierarchy application.

For IM configuration verification:

Match, Does not match, Verification failed, or Not yet verified is displayed as the status of system hierarchy verification.

For Profile collection:

Collected, Not collected, Partially collected, or Collection failed is displayed as the status of profile collection.

For Profile application:

Applied, Not applied, or Application failed is displayed as the status of profile application.

As the initial condition (profile application has not been performed yet), nothing is displayed.

For virtualization configuration information#3:

Collected, Not collected, Collection failed, or Does not match is displayed as the collection status for virtualization configuration information.

For remote monitoring settings#4:

Collected, Not collected, Collection failed, or Does not match is displayed as the collection status for the remote monitoring configuration.

Date/time#1

The time#5 on the manager that the collection, application, or verification of information was last performed in the JP1/IM - View locale.

For profile application, however, the time on the agent that profile was applied correctly by the JP1/IM - View locale.

Example: 2008/01/14 12:34:14

#1: This item is displayed by default.

#2: This item cannot be hidden.

#3: This item is displayed if the virtualization management type has been set for the selected host.

#4: This item is displayed if remote monitoring has been set for the selected host.

#5: The time on the manager on which IM Configuration Manager is running is used.

Detailed Information

The following table describes the items displayed in the Detailed Information area.

Table 5‒6: Items displayed in the Detailed Information area

Type

Item

Description

Host information

IP address

The managed host's IP address resolved on the manager host.

OS

The name of the OS running on the managed host.

VMM host#1

The name of the host on which VMM is running.

Comment

A comment.

Host

The name of a managed host.

Host name list

A list of managed hosts and their alias names.

Host type

One of the following four host types:

  • Physical host

  • Virtual host

  • Logical host

  • Unknown host

Collection date/time

The date and time that host information was last collected.

Information collection result

One of the following three types of the host information collection status for agents or remotely monitored hosts:

  • Not collected

  • Collected

  • Collection failed

If all hosts are agents, the host information for remotely monitored hosts is not displayed. If all hosts are remotely monitored, the host information for agents is not displayed.

Actual host name

The name actually specified for the managed host.

Active host#2

The name of the physical host that is the active logical host.

Standby host#2

The name of the physical host that is the standby logical host.

Configuration type

One of the following four IM configuration types:

  • Integrated manager

  • Base manager

  • Relay manager

  • Agent

Virtualization Configuration information

Virtual Manager Type#3

The virtual manager type set in the virtualization configuration information.

For the virtualization system management host, one of the following types is displayed:

  • vCenter

  • JP1/SC/CM

  • SCVMM

  • HCSM

For the VMM host, one of the following types is displayed:

  • ESX

  • Hyper-V

  • KVM

  • Virtage#4

Version#3

Version information about the virtualization configuration management product.

(If the virtual manager type is HCSM) Version information about the HCSM external interface.

If virtualization configuration information is collected from HCSM, no version number is displayed on hosts whose virtual manager type is Virtage#4.

User name#3, #5

User name

Communication type#3, #6

Communication type

Domain name#3, #7

Domain name

Port number#8

Port number

Remote monitoring settings

Remote communication type

Remote communication type

Authentication method#9

Authentication method for remote communication

User name

User name for remote communication

Domain name#10

Domain name for remote communication

#1: This item is displayed only if the host type is Virtual host.

#2: This item is displayed only if the host type is Logical host.

#3: This item is displayed only if Virtualization Configuration information is selected in Basic Information.

#4: Virtage indicates the Hitachi Compute Blade logical partitioning feature.

#5: This item is displayed only if the virtualization management type is vCenter, SCVMM, HCSM, or KVM.

#6: This item is displayed only if the virtualization management type is vCenter, HCSM, or KVM.

#7: This item is displayed only if the virtualization management type is SCVMM.

#8: This item is displayed only if the virtualization management type is HCSM or KVM.

#9: This item is displayed only if the remote communication type is SSH.

#10: This item is displayed only if the remote communication type is WMI/NetBIOS.

(3) Product Information

This area displays the full path name, product information, and detailed information of the host selected in the tree display area. The following figure shows an example of the window displayed when the Product Information button is clicked.

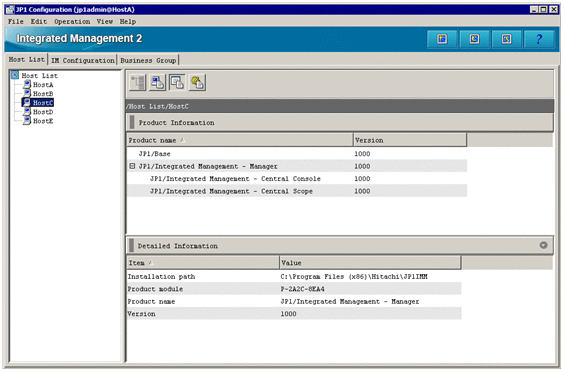

Figure 5‒5: Host List page displayed when the Product Information button is clicked

[Figure]

Product Information

The items to be displayed in the Product Information area, such as Product name and Version, can be selected from the menu displayed when the user right-clicks the item name.

The following table describes the items that can be displayed in the Product Information area.

Table 5‒7: Items displayable in the Product Information area

Item

Displayed information

Product name#1, #2

The product name.

Example: JP1/Base

Version#1

The product version.

Example: 0900

#1: This item is displayed by default.

#2: This item cannot be hidden.

Detailed Information

The items to be displayed in the Detailed Information area, such as Product name, Product module, Version, and Installation path, can be selected from the menu displayed when the user right-clicks the item name.

The following table describes the items that can be displayed in the Detailed Information area.

Table 5‒8: Items displayable in the Detailed Information area

Item

Displayed information

Product name

The product name.

Example: JP1/Base

Product module#

The product module.

Example: P-242C-6LAL

Version#

The product version.

Example: 0900

Installation path#

The installation directory for the product.

Example: c:\Program files\Hitachi\JP1Base

#: If the version of JP1/Base running on the host is 9 or earlier, only information for Product name is displayed. All other items are blank.

(4) Service Information

This area displays the full path name, service information, and detailed information for the host selected in the tree display area. The following figure shows an example of the window displayed when the Service Information button is clicked.

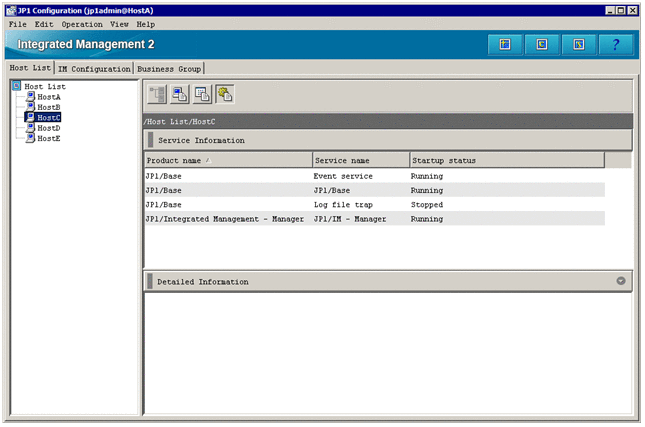

Figure 5‒6: Host List page displayed when the Service Information button is clicked

[Figure]

Service Information

The items to be displayed in the Service Information area, such as Product name, Service name, and Startup status, can be selected from the menu displayed when the user right-clicks the item name.

The following table describes the items that can be displayed in the Service Information area.

Table 5‒9: Items displayable in the Service Information area

Item

Description

Product name#1

The product name of the service.

Example: JP1/Base

Service name#1, #2

The service name.

Example: Event service

Startup status#1, #2

One of the following four service startup statuses:

  • Running

  • Stopped

  • Partially running

  • Collection failed

#1: This item is displayed by default.

#2: This item cannot be hidden.

Detailed Information

The Detailed Information area displays commands that the user can use to check the status of the service, and displays the standard error output. For remote monitoring, this area displays information equivalent to the information that the status check command outputs to the standard output and standard error output.
