3.6.13 Displaying a grid on a menu form

To display a grid on a menu form and set the grid spacing:

1. Choose Edit, Layout, Set Grid.

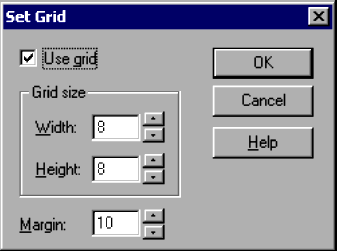

   The Set Grid dialog box appears.



   For details about using this dialog box, see 4.4.40 Set Grid dialog box.

2. Select the Use grid check box.



3. Set Width, Height, and Margin.

   Set the values in pixels.



4. Click OK.

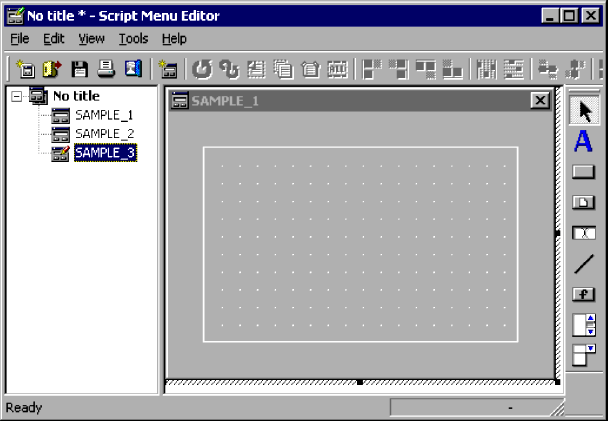

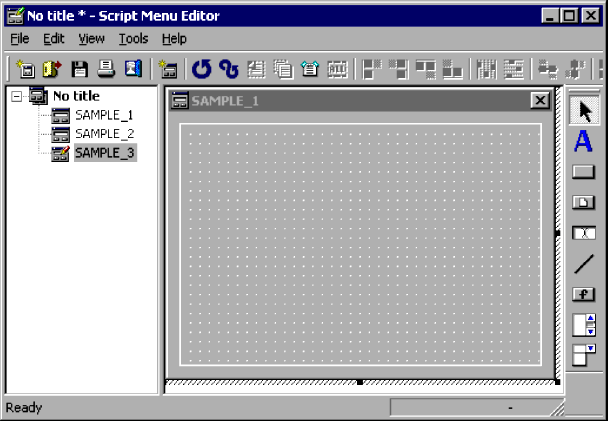

   The grid appears on the menu form.



Notes

• When you drag and position a control on a menu form, the control snaps to the grid line. To place a control without using the grid, hold down the Alt key while you drag the control.

• By holding down the Shift key and dragging a control, you can move the control vertically and horizontally only.

• To remove the grid display, clear the Use grid check box.
