4.4.40 Set Grid dialog box

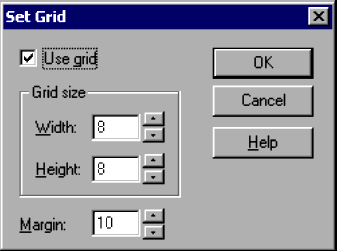

The Set Grid dialog box appears when you choose Edit, Layout, Set Grid. Set the grid spacing for display on a menu form.
![[Figure]](GRAPHICS/ZU040440.GIF)
- Organization of this subsection
(1) Components
In the Set Grid dialog box, you can set the following items.
- Use grid
-
Select to display a grid.
- Grid size
-
- Width and Height
-
Specify in pixels the width and height of the grid.
Set values in the range 1 to 100. The default is 8.
- Margin
-
Specify in pixels the size of the margins.
Set a value in the range 0 to 100. The default is 10.
(2) Operations
-
Click OK to apply the settings and close the Set Grid dialog box.
-
Click Cancel to close the dialog box without applying the settings.
