Hitachi

JP1 Version 11 JP1/Script Description and Reference (For Windows Systems)


3.6.14 Setting the tab order

To set the order in which the tab key moves among controls:

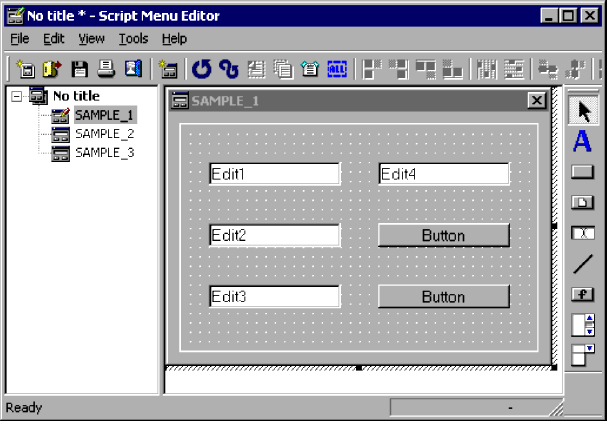

  1. Display a menu form.

    [Figure]

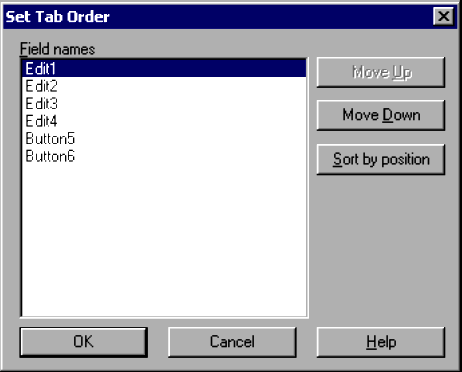

  2. Choose Edit, Layout, Set Tab Order.

    The Set Tab Order dialog box appears.

    [Figure]

    For details about using this dialog box, see 4.4.41 Set Tab Order dialog box.

  3. Select a field name.

    Select a field name to move. In this example, Edit4 is selected.

    [Figure]

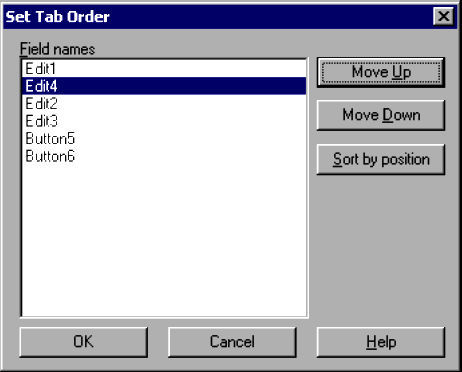

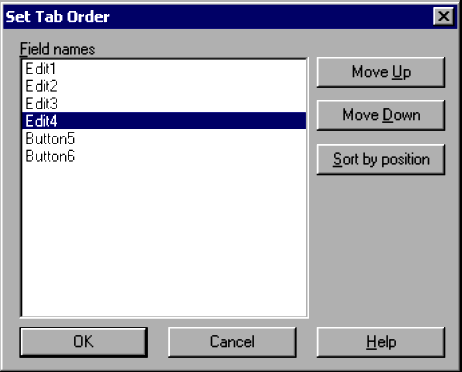

  4. Move the field name.

    Click the Move Up button to move the field up one line, or the Move Down button to move the field down one line. To sort the list in order of the field coordinates, click Sort by position.

    [Figure]

  5. Click OK.
