3.4.7 Saving a trace file under a new name

To save a selected trace file under a new name:

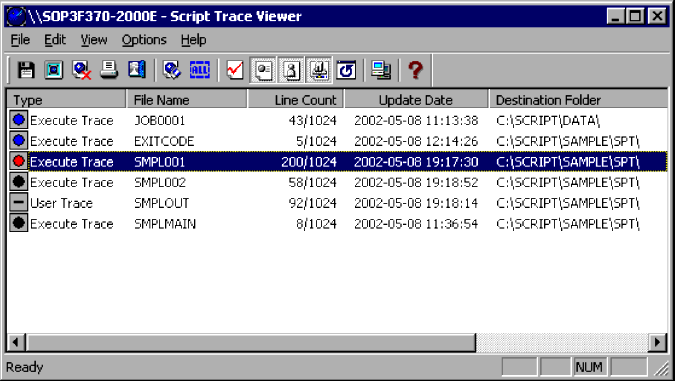

  1. In the client area of the Script Trace Viewer window, select the trace file you want to save under a new name. Alternatively, make sure the trace file you want to save is currently displayed in a Trace Files Display window.

    [Figure]

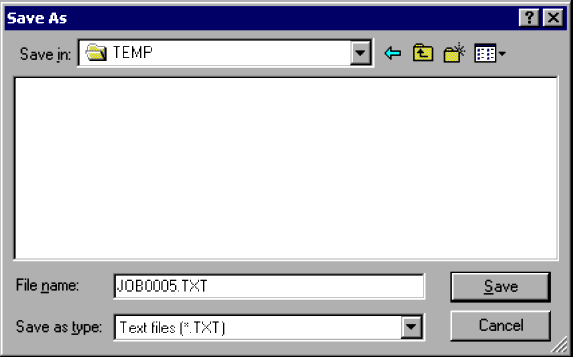

  2. Choose File, Save As. In the displayed dialog box, enter the file name, then click Save.

    [Figure]

    The selected trace file is saved under the specified name.

Note

If you choose Cancel at step 2, in the Trace Viewer window, the Trace Viewer window appears as an icon when the Trace Files Display window opens at step 2.
