JP1 Version 11 JP1/Script Description and Reference (For Windows Systems)


3.4.8 Deleting a trace file

You can delete a trace file selected in the Script Trace Viewer window or displayed in a Trace Files Display window.

To delete a trace file:

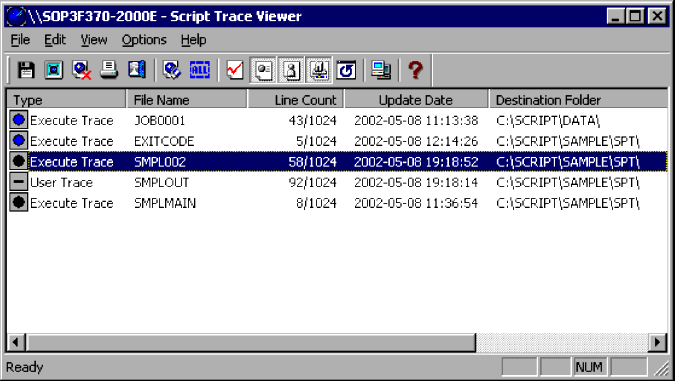

  1. In the client area of the Script Trace Viewer window, select one or more trace files that you want to delete. Alternatively, make sure the trace file(s) you want to delete are currently displayed in Trace Files Display windows.

    [Figure]

  2. Choose File, Delete Trace File.

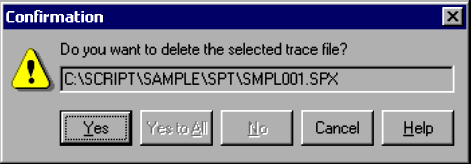

    The Confirmation dialog box appears.

    [Figure]

    For details about using this dialog box, see 4.3.1 Confirmation (delete trace file) dialog box.

  3. Click the Yes button.

    One trace file is deleted. If you selected more than one trace file, you are then asked to confirm deletion of the next file.

    [Figure]

    This process is repeated for all the trace files you selected. When all the files have been deleted, the dialog box closes.

Notes
  • If you click Yes to All in step 3, all the selected files are deleted.

  • If you click Cancel in step 3, file deletion is canceled and the dialog box closes.
