Hitachi

JP1 Version 11 JP1/Script Description and Reference (For Windows Systems)


3.4.6 Displaying trace file contents

You can select a trace file in the Script Trace Viewer window and display its contents in a Trace Files Display window. You can view the contents of multiple trace files at the same time.

To view trace file contents:

  1. In the Script Trace Viewer window, select one or more trace files.

    [Figure]

  2. Choose File, View Trace File.

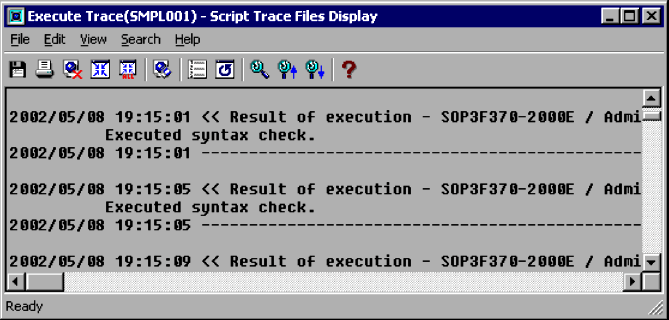

    The contents of the trace file appear in the Script Trace Files Display window.

    [Figure]

  3. In the Script Trace Files Display window, choose File, and then Close View Window or Close All View Windows.

Note

If you have already chosen View, Minimize When Inactive in the Script Trace Viewer window, the Script Trace Viewer window appears as an icon when the Trace Files Display window opens at step 2.
