Hitachi

JP1 Version 11 JP1/Script Description and Reference (For Windows Systems)


3.2.6 Setting the Editor operating environment

To set the Editor operating environment:

  1. Choose Edit, Options.

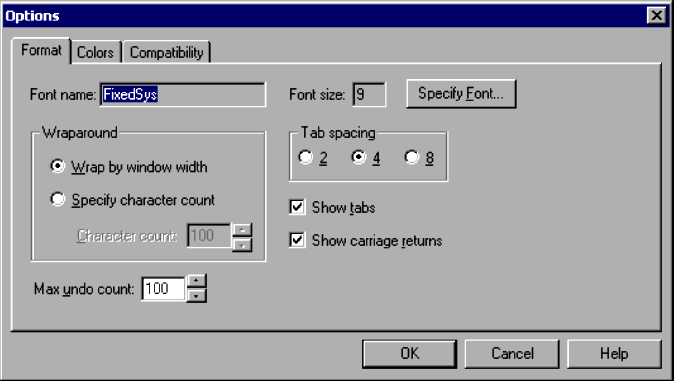

    The Options (Format) dialog box appears.

    [Figure]

    For details about using this dialog box, see 4.2.2 Options (Format) dialog box.

  2. Set format information.

  3. Click the Colors tab.

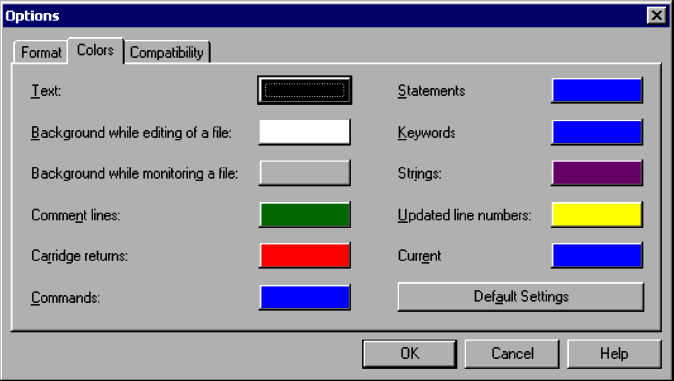

    The Options (Colors) dialog box appears.

    [Figure]

  4. Set display color information.

    To reset the display color of all items to the defaults, click Default Settings.

    For details about using this dialog box, see 4.2.3 Options (Colors) dialog box.

  5. Click the Compatibility tab.

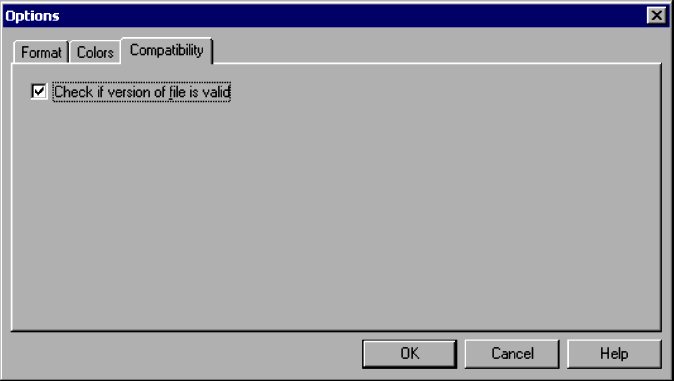

    The Options (Compatibility) dialog box appears.

    [Figure]

  6. Specify whether to check if the file version is specified at the head of the script file.

    For details about using this dialog box, see 4.2.4 Options (Compatibility) dialog box.

  7. Click the OK button.

    The operating environment is set for Editor and the dialog box closes.
