Hitachi

JP1 Version 11 JP1/Script Description and Reference (For Windows Systems)


3.2.7 Checking script syntax

To check the syntax of a completed script file:

  1. Choose Monitoring, Syntax Check.

    Editor is set to monitoring mode and the syntax check starts.

    The screen darkens momentarily.

    [Figure]

    (Window display while the syntax check is in progress)

    [Figure]

    (Window display at syntax check completion)

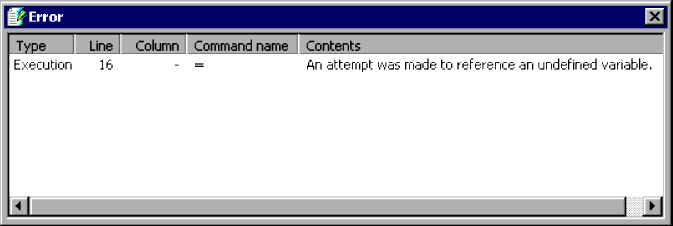

    Any syntax errors that are found appear in an Error window.

  2. Check the contents of the Error window.

    [Figure]

Notes
  • The Syntax Check command is disabled when Script Editor is in monitoring mode.

  • If you attempt to check the syntax of an unnamed script file, the Save As dialog box appears. You must save the file before you can perform the syntax check.

  • If you have edited the script file, the syntax check is performed on the updated contents, but the updates are not saved.
