JP1 Version 11 JP1/Script Description and Reference (For Windows Systems)


4.2.2 Options (Format) dialog box

The Options dialog box appears when you choose Edit, Options in the Script Editor window.

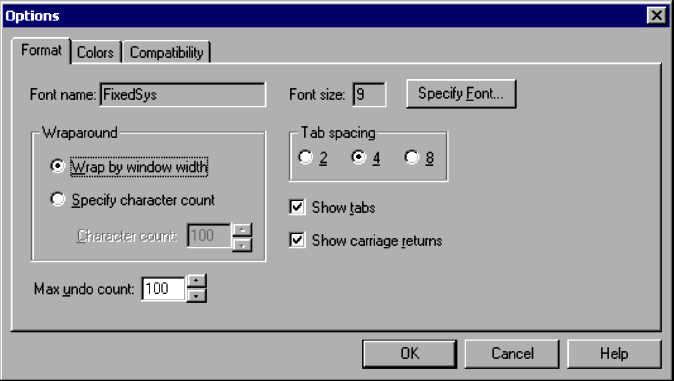

The Options dialog box has three tabs: Format, Colors, and Compatibility. Click the Format tab to display the Options (Format) page.

[Figure]

Organization of this subsection

(1) Components

Font name

Shows the font name. To change the font, click the Specify Font button.

FixedSys is set by default.

Font size

Shows the font size. To change the font size, click the Specify Font button.

14 is set by default.

Wraparound

Select a text wrap method.

Wrap by window width is selected by default.

Wrap by window width

Wrap text to the window width.

Specify character count

Wrap text at a fixed number of characters.

Character count

Set the number of characters at which to wrap text.

This box is available only when you select Specify character count.

Set a value in the range 20 to 512.

Tab spacing

Set the number of tabs.

4 is set by default.

Show tabs

Choose whether to show or hide tabs. This check box is selected by default.

Show carriage returns

Choose whether to show or hide carriage returns. This check box is selected by default.

Max undo count

Specify how many times the user can choose Edit, Undo.

Set a value in the range 10 to 999. 100 is set by default.

(2) Operations
