6.7 User Groups view (User Groups tab)

Use the User Groups view (User Groups tab) to manage user groups.

To display the User Groups view (User Groups tab), select the User Groups in the Administration window.

The User Groups view (User Groups tab) and windows accessed from this view display user groups and users that are shared with Hitachi Command Suite products.

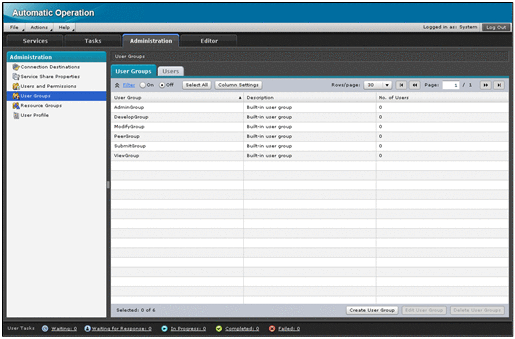

Figure 6-21 User Groups view (User Groups tab)

The following items are displayed in this view:

User Groups

A list of user groups is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be displayed in this list, use the Column Settings dialog box.

Table 6-14 Items displayed in the list of user groups (User Groups view (User Groups tab))

Display item	Displayed by default	Description
User Group	Yes	Displays the name of each user group.
Description	Yes	Displays a brief description of each user group. In the case of a built-in user group, Built-in user group is displayed here.
No. of Users	Yes	Displays the number of users registered to each user group.
Distinguished Name	No	Displays the external authentication group ID.

Legend:

Yes: Displayed by default, No: Hidden by default

Create User Group button

If you click this button, the Create User Group dialog box appears.

Edit User Group button

If you select a user group and then click this button, the Edit User Group dialog box appears. This button is hidden when the logged-in user assumes either a Modify or Submit role and a user group linked with external authentication is selected.

Delete User Groups button

If you select a user group and then click this button, the Delete User Groups dialog box appears. You can select multiple user groups at a time.

Organization of this section

6.7.1 Create User Group dialog box

6.7.2 Add Users dialog box (User Groups)

6.7.3 Add Resource Groups dialog box

6.7.4 Edit Roles dialog box

6.7.5 Edit User Group dialog box

6.7.6 Delete User Groups dialog box
