6.7.4 Edit Roles dialog box

Use the Edit Roles dialog box to select a role to be assigned to a resource group.

To display the Edit Roles dialog box, perform one of the following operations:

• In the Create User Group dialog box, click the Edit Roles button.
• In the Edit User Group dialog box, click the Edit Roles button.

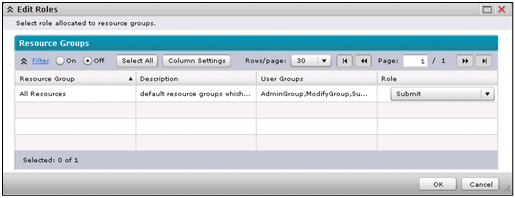

Figure 6-25 Edit Roles dialog box

The following items are displayed in this dialog box:

Resource Groups

A list of resource groups for which to select roles is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be displayed in this list, use the Column Settings dialog box.

Table 6-19 Items displayed in the list of resource groups (Edit Roles dialog box)

Display item	Displayed by default	Description
Resource Group	Yes	Displays the name of each resource group.
Description	Yes	Displays a brief description of each resource group. In the case of a built-in resource group, default resource groups which contains all resources is displayed here.
User Groups	Yes	Displays a user group that is currently assigned to the resource group.
Role	Yes	Provides a list box for selecting the role of the selected resource group.

Legend:

Yes: Displayed by default

OK button

To apply the change made to the role, click this button.

Cancel button

To close the Edit Roles dialog box, click this button.
