6.7.3 Add Resource Groups dialog box

Use the Add Resource Groups dialog box to add resource groups to a user group.

To display the Add Resource Groups dialog box, perform one of the following operations:

• In the Create User Group dialog box, click the Add Resource Groups button.
• In the Edit User Group dialog box, click the Add Resource Groups button.

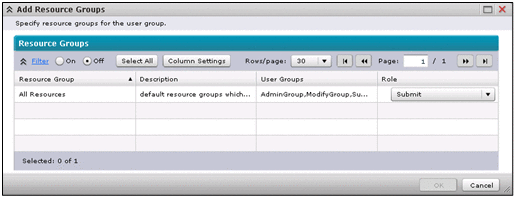

Figure 6-24 Add Resource Groups dialog box

The following items are displayed in this dialog box:

Resource Groups

A list of resource groups that can be added to a user group is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be displayed in this list, use the Column Settings dialog box. Note that resource groups created by Hitachi Command Suite products are not displayed here even when Hitachi Command Suite products are already installed.

Table 6-18 Items displayed in the list of resource groups (Add Resource Groups dialog box)

Display item	Displayed by default	Description
Resource Group	Yes	Displays the name of each resource group.
Description	Yes	Displays a brief description of each resource group. In the case of a built-in resource group, default resource groups which contains all resources is displayed here.
User Groups	Yes	Displays a user group that is currently assigned to the resource group.
Role	Yes	Provides a list box for selecting the role of the selected resource group.

Legend:

Yes: Displayed by default

OK button

If you select a resource group and then click this button, the selected resource group is displayed in the list of resource groups in the Create User Group dialog box. You can select multiple resource groups at a time.

Cancel button

If you click this button, the Add Resource Groups dialog box closes.
