6.7.5 Edit User Group dialog box

Use the Edit User Group dialog box to edit a selected user group to which to assign users and resource groups.

To display the Edit User Group dialog box, select a user group in the User Groups view (User Groups tab) and then click the Edit User Group button.

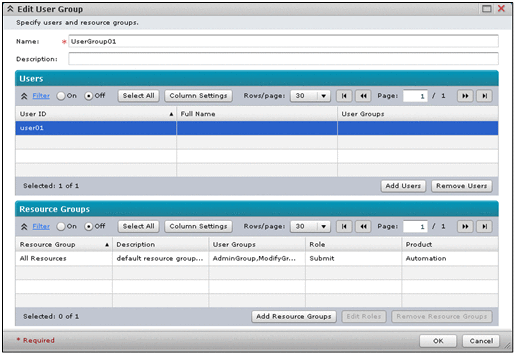

Figure 6-26 Edit User Group dialog box

The following items are displayed in this dialog box:

Name text box

The name of the user group is displayed here. Enter a new name for the user group. The text box allows a maximum of 64 characters. Note that you cannot change the name of a built-in user group.

Description text box

A brief description of the user group is displayed here. Enter a new description for the user group. The text box allows a maximum of 80 characters. Note that you cannot change the description of a built-in user group.

Users

A list of users added to the user group is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be displayed in this list, use the Column Settings dialog box.

Table 6-20 Items displayed in the list of users (Edit User Group dialog box)

Display item	Displayed by default	Description
User ID	Yes	Displays the user ID.
Full Name	Yes	Displays the full name of each user.
User Groups	Yes	Displays the user group to which the user currently belongs.

Legend:

Yes: Displayed by default

Add Users button

If you click this button, the Add Users dialog box (User Groups) appears.

Remove Users button

If you select a user and then click this button, the selected user is deleted from the list. You can select multiple users at a time.

Resource Groups

A list of resource groups to be assigned to the user group is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order.

To select the items to be displayed in this list, use the Column Settings dialog box. If Hitachi Command Suite products are already installed, the list also shows the resource groups created by Hitachi Command Suite products. Note, however, that you cannot edit roles of or remove the resource groups created by Hitachi Command Suite products.

Table 6-21 Items displayed in the list of resource groups (Edit User Group dialog box)

Display item	Displayed by default	Description
Resource Group	Yes	Displays the name of each resource group.
Description	Yes	Displays a brief description of each resource group. In the case of a built-in resource group, default resource groups which contains all resources is displayed here.
User Groups	Yes	Displays a user group that is currently assigned to the resource group.
Role	Yes	Displays the role of the selected resource group.
Product	Yes	Displays the name of the product that manages the resource group. In the case of a JP1/AO resource group, Automation is displayed here.

Legend:

Yes: Displayed by default

Add Resource Groups button

If you click this button, the Add Resource Groups dialog box appears. This button is displayed only when the logged-in user has both the User Management permission and the Admin role. This button, however, is not displayed when a built-in user group is selected.

Edit Roles button

If you select a resource group and then click this button, the Edit Roles dialog box appears. You can select multiple resource groups at a time. This button is displayed only when the logged-in user has both the User Management permission and the Admin role. This button, however, is not displayed when a built-in user group is selected, or when a resource group created by Hitachi Command Suite products is selected.

Remove Resource Groups button

If you select a resource group and then click this button, the selected resource group is removed from the list. You can select multiple resource groups at a time. This button is displayed only when the logged-in user has both the User Management permission and the Admin role. This button, however, is not displayed when a built-in user group is selected, or when a resource group created by Hitachi Command Suite products is selected.

OK button

To apply the changes made to the user group, click this button.

Cancel button

To close the Edit User Group dialog box, click this button.
