4.1 Services window

Use the Services window to check or execute the services registered in JP1/AO.

To display the Services window, select the Services tab in the main window.

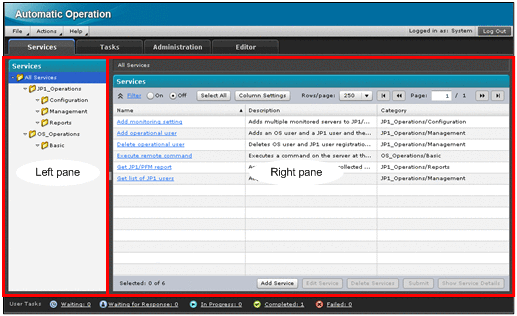

Figure 4-1 Services window

The following items are displayed in this window:

Left pane

All Services menu

A tree view of the categories to which services are registered is displayed.

Right pane

Services

The information on services belonging to the category selected in the left pane is displayed in list format. If you click the column title of a display item, the data will be sorted in ascending or descending order. To select the items to be displayed in this list, use the Column Settings dialog box.

Table 4-1 Items displayed in Services (Services window)

Display item	Displayed by default	Description
Name	Yes	Displays the name of each service. If you click Name, the Submit Service dialog box appears.
Description	Yes	Displays a brief description of each service.
Category	Yes	Displays the category specified for each service.
Resource Group	No	Displays a resource group to which the service is registered.
Service Template	No	Displays the name of the service template on which the service is based.
Vendor	No	Displays the name of the vendor that created the service template.
Version	No	Displays the version of the service template on which the service is based.
Configuration Type	No	Displays the configuration type of the service template that is used for each service.

Legend:

Yes: Displayed by default, No: Hidden by default

Add Service button

If you click this button, the Add Service dialog box appears.

Edit Service button

If you select a service and then click this button, the Service Definition dialog box appears.

Delete Services button

If you select a service and then click this button, the Delete Services dialog box appears.

Submit button

Use this button to execute the selected service. If you click this button, the Submit Service dialog box appears.

Show Service Details button

If you click this button, a brief description of the selected service is displayed.

Organization of this section

4.1.1 Submit Service dialog box

4.1.2 Add Service dialog box

4.1.3 Service Definition dialog box

4.1.4 Delete Services dialog box
