4.1.1 Submit Service dialog box

Use the Submit Service dialog box to execute a service registered in JP1/AO.

To display the Submit Service dialog box, select a service in the Services window and then click the Submit button.

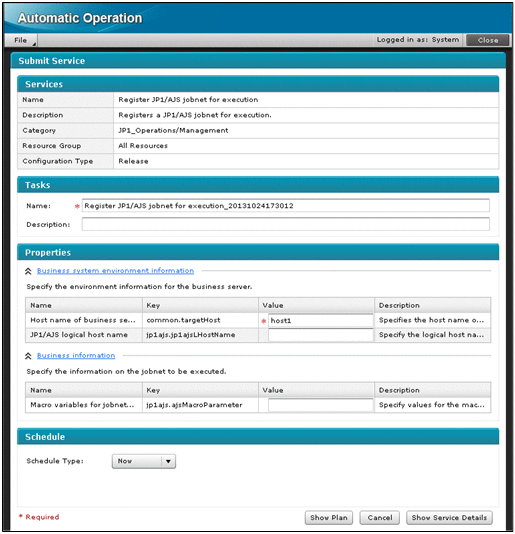

Figure 4-2 Submit Service dialog box

The following items are displayed in this dialog box:

Services

Name

The name of the service to be executed is displayed.

Description

A brief description of the service is displayed.

Category

The category to which the service to be executed belongs is displayed.

Resource Group

The resource group that the service to be executed is registered to is displayed

Configuration Type

The configuration type of the service template on which the service is based is displayed.

Tasks

Name text box

Enter a task name in this text box.

The text box allows a maximum of 128 characters. By default, service-name_YYYYMMDDhhmmss is displayed.

Description text box

Enter a brief description of the task. The text box allows a maximum of 256 characters.

Properties

Property information is displayed for the selected service. If you click the column title of a display item, the data will be sorted in ascending or descending order. The properties vary depending on the service template used.

property-group

Each property is displayed per group. This item will not be displayed when no property groups are set in the service template.

Table 4-2 Items displayed in the list of properties (Submit Service dialog box)

Display item	Description
Name	Displays the name of each property.
Key	Displays the name of each property key.
Value	Provides fields in which to enter a property value necessary to execute each service.
Description	Displays a brief description of each property.

Schedule

Select the timing to execute the services.

Schedule Type list box

Select the type of Schedule.

• Now
  Select this item to execute the services immediately.

• Later
  If you select this item, the Schedule Starts On text box and the Schedule Time spin box appear.
  If you want to execute the services at the specified date and time, select this item.

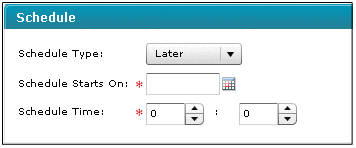

  Figure 4-3 Submit Service dialog box (when Later is selected)



  Schedule Starts On text box

  Click the Calendar button. From the displayed calendar, select the date to specify the execution start date for the service.

  Schedule Time spin box

  Specify the execution start time (hour and minute) in 24-hour format.

• Recurring
  If you select this item, the Schedule Starts On text box, the Recurrence Pattern list box, and the Recurrence Time spin box appear.
  If you want to execute the services periodically at the specified date and time, select this item.

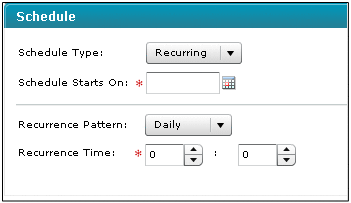

  Figure 4-4 Submit Service dialog box (when Recurring is selected)



  Schedule Starts On text box

  Click the Calendar button. From the displayed calendar, select the date to specify the execution start date for the service.

  Recurrence Pattern list box

  Specify the recurrence pattern of the service. The options available are Daily, Weekly, and Monthly.

  • Daily
    Starting from the specified execution start date, the service is executed daily at the specified time.

  • Weekly
    If you select this option, the Recurs On check boxes appear. Select the day of the week on which to execute the service.


    Recurs On check boxes

    Specify the day of the week on which to periodically execute the service. You can select multiple days.

  • Monthly
    If you select this option, the Recurrence Date text box and the Last day of the month check box appear.


    Recurrence Date text box

    Enter the date on which to periodically execute the service. An integer value in the range from 1 to 31 can be entered. You can specify multiple dates. To specify multiple dates, delimit the dates with a comma (,). For example, if you want to execute the service on the 1st and 15th day of the month, enter 1,15.

    If you specify 31, the service will not be executed in the months that have only 30 days. If you want to execute the service at every end of the month, select the Last day of the month check box.

    Last day of the month check box

    If you select this check box, the service is executed at every end of the month.

  Recurrence Time spin box

  Specify the start time (hour and minute) at which to periodically execute the service.

Show Plan button

If you click this button, the Plan Summary dialog box appears. Check the detailed plan for executing the service. To execute the service, click the Submit button in the Plan Summary dialog box.

Cancel button

If you click this button, the Submit Service dialog box closes.

Show Service Details button

If you click this button, a brief description of the service appears.
