4.1.2 Add Service dialog box

Use the Add Service dialog box to select a service to be added from the service templates imported to JP1/AO and then assign that service to a resource group.

To display the Add Service dialog box, click the Add Service button in the Services window.

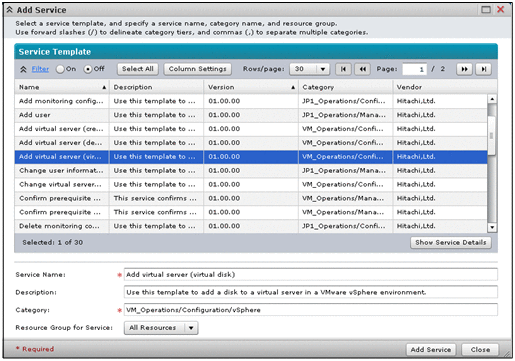

Figure 4-5 Add Service dialog box

The following items are displayed in this dialog box:

Service Template

A list of service templates imported to JP1/AO is displayed. If you click the column title of a display item, the data will be sorted in ascending or descending order. Select a service template to be used to create a service to be added. To select the items to be displayed in this list, use the Column Settings dialog box.

Table 4-3 Items displayed in the list of service templates (Add Service dialog box)

Display item	Displayed by default	Description
Name	Yes	Displays the name of each service template.
Description	Yes	Displays a brief description of each service template.
Version	Yes	Displays the version of each service template.
Category	Yes	Displays the category of each service template.
Vendor	Yes	Displays the name of the vendor that created the service template.
Configuration Type	No	Displays the configuration type of each service template.

Legend:

Yes: Displayed by default, No: Hidden by default

Show Service Details button

If you click this button, a detailed description of the service appears.

Service Name text box

The name of the service template you have selected in the list of service templates is automatically entered here. You can rename the service. The text box allows a maximum of 64 characters.

Description text box

A brief description of the service template you have selected in the list of service templates is automatically entered here. You can change this description. The text box allows a maximum of 256 characters.

Category text box

The name of the category of the service template you have selected in the list of service templates is automatically entered here. You can rename the category. The text box allows a maximum of 256 characters. To delineate category tiers, use forward slashes (/) to separate categories. You can have a maximum of 10 category tiers. To specify multiple categories for a service, use commas (,) to separate categories. Make sure that you enter values for all tiers of a category name.

Resource Group for Service list box

Select a resource group. The list box shows a list of resource groups for which the user is granted permissions to assume a Modify or higher role.

• All Resources
  This item refers to a resource group to which all resources are registered. By default, All Resources is displayed in the list box.

• resource-groups-other-than-All-Resources
  These items refer to the resource groups for which the user is granted permissions to assume a Modify role.


Add Service button

To add a service, click this button. The Service Definition dialog box appears. You can add a maximum of 1,000 services.

Close button

If you click this button, the Add Service dialog box closes.
