4.1.4 Delete Services dialog box

Use the Delete Services dialog box to delete unnecessary services.

To display the Delete Services dialog box, click a service in the Services window and then click the Delete Services button.

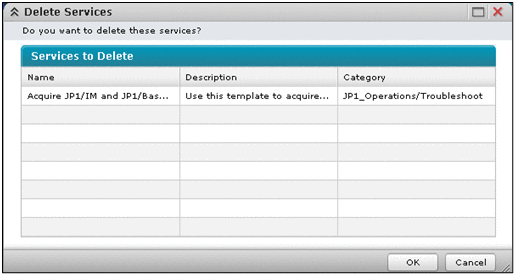

Figure 4-7 Delete Services dialog box

[Figure]

The following items are displayed in this dialog box:

Services to Delete
A list of services to be deleted is displayed here. If you click the column title of a display item, the data will be sorted in ascending or descending order.

Table 4-5 Items displayed in Services to Delete (Delete Services dialog box)

Display item Description
Name Displays the name of each service.
Description Displays a brief description of each service.
Category Displays the name of each category.

OK button
If you click this button, the services displayed in the list are deleted.

Cancel button
If you click this button, the Delete Services dialog box closes.
