6.13.6 ContainObjects(Check string function)

This section defines the Check string function (contain).

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table describes the definition items.

Table 6-31 TableContainObjects definition items

Item name Definition contents Value that you can define Additional description
Name Function name Value of NCName type This is mandatory item. You cannot define the Name in Objects, in duplication.
Input Input See "6.12.2 Setting up the mapping definition" -
Check Check type "include" or "start" This is mandatory item.

In case of "include"
As check type, set up the "Include the specified character string".

In case of "start"
As check type, set up "Start from the specified character string".
String Check target character string Character string having less than 1,024 characters (you cannot define the linefeed code) -

(Legend)
-: Corresponding item does not exist.

(2) Definition example

Following figure shows the definition example.

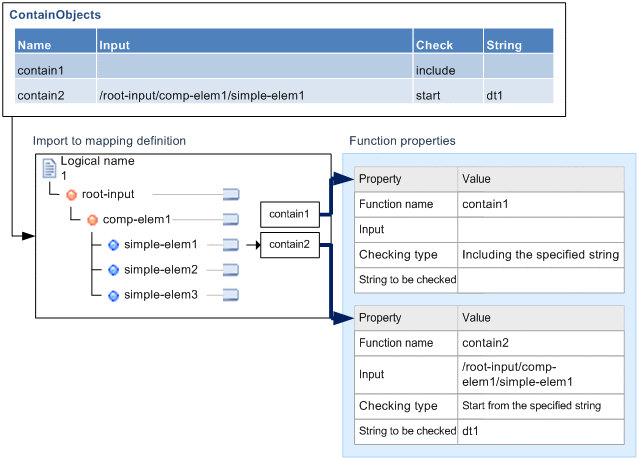

Figure 6-70 FigureContainObjects definition example

[Figure]
