6.13.7 TrimObjects (Trim node function)

This section defines the Trim node function (trim).

Organization of this subsection
(1) Definition items
(2) Definition example

(1) Definition items

Following table describes definition items:

Table 6-32 TableTrimObjects definition items

Item name Definition contents Value that you can define Additional description
Name Function name Value of NCName This is mandatory item. You cannot define the Name in Objects, in duplication.
Input Input See "6.12.2 Setting up the mapping definition" -

(Legend)
-: Corresponding item does not exist.

(2) Definition example

Following figure shows the definition example:

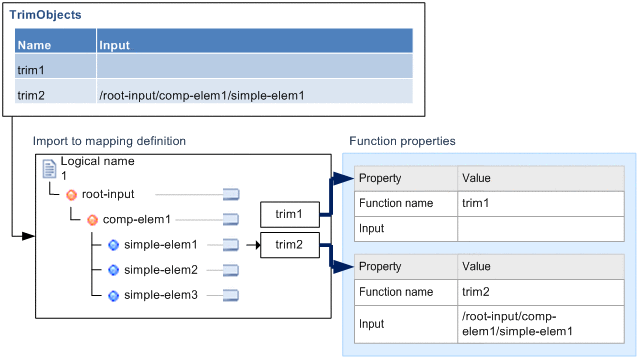

Figure 6-71 FigureTrimObjectsDefinition example

[Figure]
