6.13.5 LengthObjects (Acquire string length function)

This section defines the Acquire string length function (length).

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table describes definition items.

Table 6-30 TableLengthObjects definition item

Item name Definition contents Value that you can define Additional description
Name Function name Value of NCName type This is mandatory item. You cannot define same Name in Objects, in duplication.
Input Input See "6.12.2 Setting up the mapping definition" Surrogate pair is handled as 2 characters.

(2) Definition example

Following figure shows the definition example:

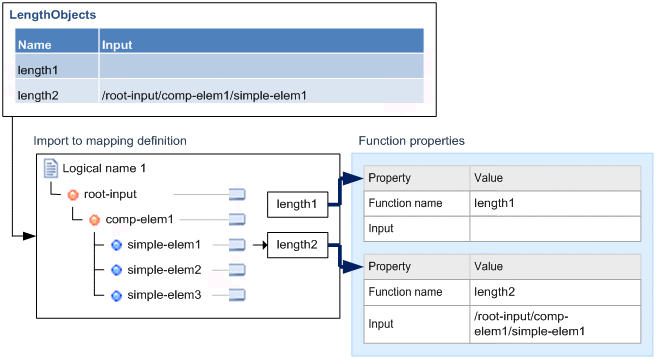

Figure 6-69 FigureLengthObjects definition example

[Figure]
