6.13.1 Namespaces (namespace information)

Define the namespace information to be used in the definition of the path that shows the transformation source node or transformation destination node on the mapping definition editor, such as Input items of the object. If the Prefix item defined in Namespaces has been used as namespace prefix described in Input item of the object, determine the namespace to which that namespace prefix belongs, with the information defined in Namespaces.

Definition having Prefix item as "#default" shows the default namespace (namespace to belong to when namespace prefix does not exist). When not having definition where Prefix item is "#default", default namespace is considered as blank.

When URI item is blank, namespace of element to which corresponding namespace prefix is attached is considered as blank.

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table shows the definition item:

Table 6-26 TableNamespaces definition

Item name Definition contents Value that you can define Additional description
Prefix Namespace prefix Value of NCName type or "#default" This is mandatory item. You cannot define same prefix in duplication.

In case of "#default"
Set the default namespace.
URI Namespace Value of anyURI type -

(Legend)
-: Corresponding item does not exist.

(2) Definition example

Following figure shows the definition example:

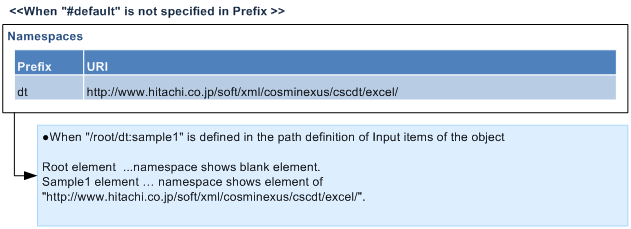

Figure 6-59 FigureNamespaces definition example1

[Figure]

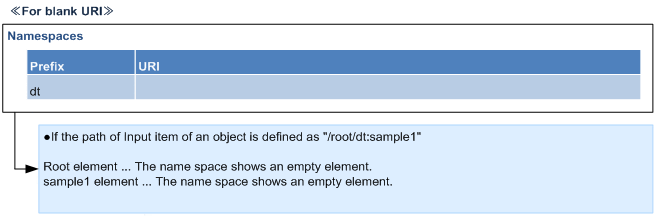

Figure 6-60 FigureNamespaces definition example2

[Figure]

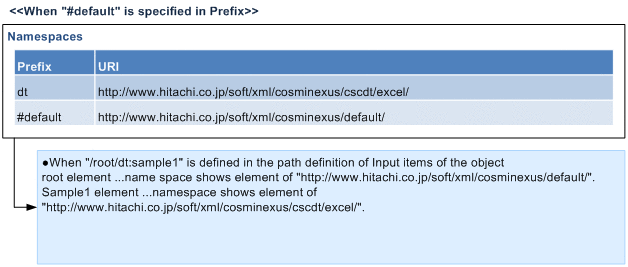

Figure 6-61 FigureNamespaces definition example3

[Figure]
