6.13.2 CopyObjects (mapping to transformation destination node)

Defines the mapping line from function or transformation source node defined in other object to the transformation destination node.

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table describes definition items:

Table 6-27 TableCopyObjects definition

Item name Definition contents Value that you can define Additional description
Name Mapping name Value of NCName type This is mandatory item. In Objects, you cannot define same name in duplication.
This item is not used in the mapping definition.
Input Input See "6.12.2 Setting up the mapping definition" This is mandatory item.
Output Output See "6.12.2 Setting up the mapping definition" This is mandatory item.
Dependency Dependency target See "6.12.2 Setting up the mapping definition" This item is mandatory when multiple LoopObjects that can be set as dependency target have been defined. When there is 1 LoopObjects that can be set as dependency target, set that LoopObjects as dependency target. For the definition of LoopObjects, see "6.13.18 LoopObjects (Repeat function)".

(2) Definition example

Following figure shows the definition example:

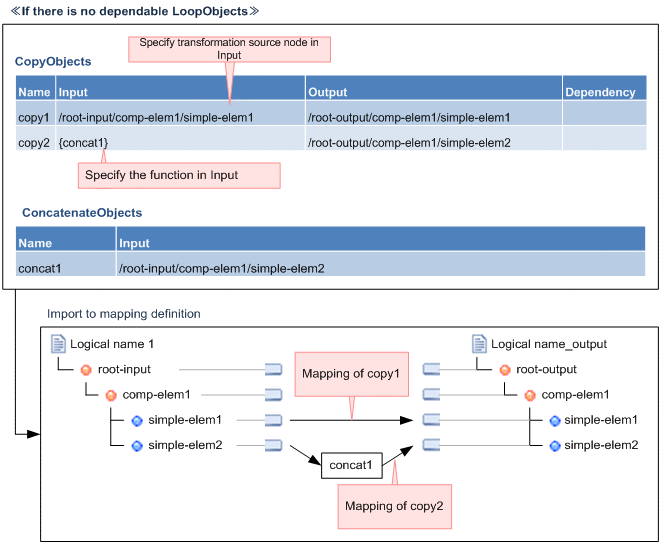

Figure 6-62 FigureCopyObjects definition example1

[Figure]

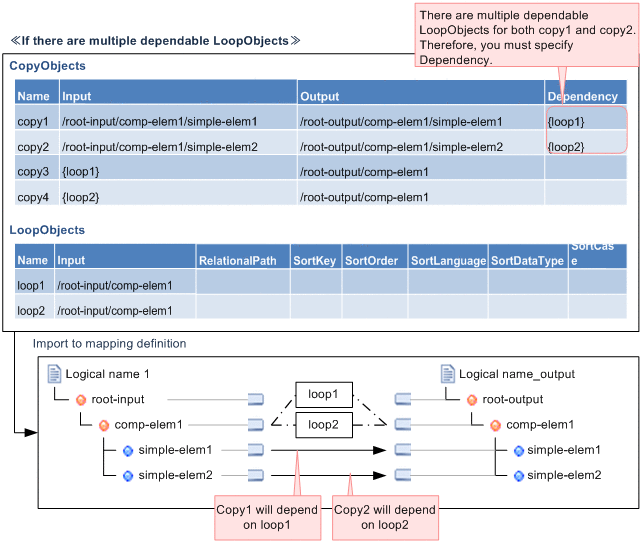

Figure 6-63 FigureCopyObjects definition example2

[Figure]

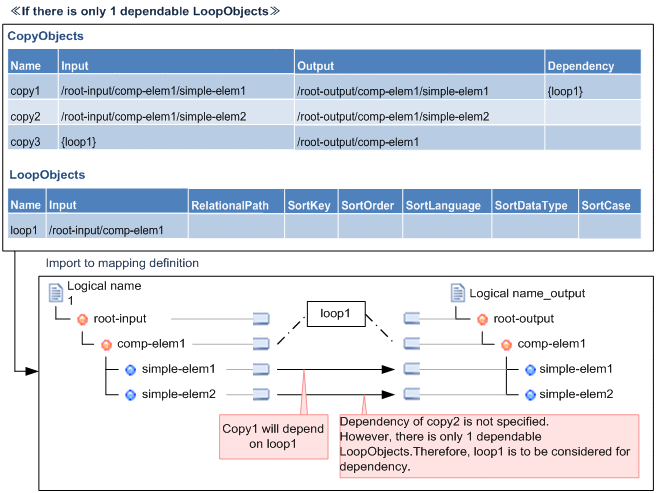

Figure 6-64 FigureCopyObjects definition example3

[Figure]
