3.3 Output of design information

In the development environment, you can output an overview of repository, the definition information of business processes, and the definition information of service adapters as the design information in an HTML file. When you output the design information, the efficiency of operations can be improved because the defined information can be checked without using windows of the development environment. Also, the design information is output into the HTML file in a uniform format.

The following figure shows an overview of the design information output:

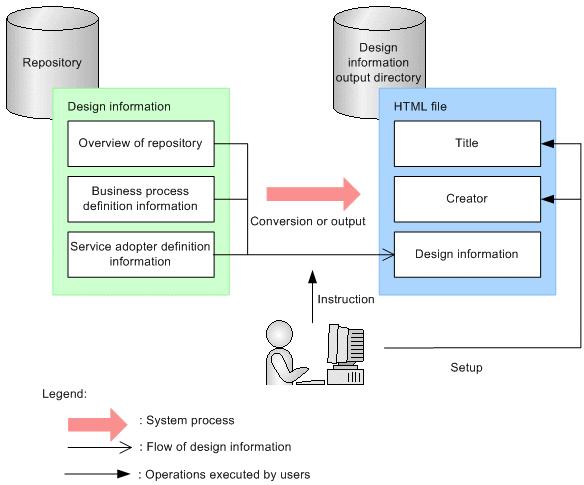

Figure 3-2 Overview of design information output

[Figure]

Organization of this section
3.3.1 Information that can be output as design information
3.3.2 Items to be checked before output
3.3.3 How to output the design information
3.3.4 Notes on outputting design information
