3.3.3 How to output the design information

The method of outputting design information is described below.

  1. From the menu, select HCSC-Definer - Design Information Output.
    When a service or user-defined reception is being edited
    A dialog box that confirms whether to save (privatize) the service or user-defined reception being edited appears. If multiple services or user-defined receptions are being edited, the dialog box appears multiple times. To save, click the Yes button. To save all without displaying the confirmation dialog box thereafter, click the Yes to All button. If you do not want to save the service or user-defined reception, click the Cancel button and end the processing.
    Proceed to step 2.
    When a service or user-defined reception is not being edited
    The output wizard of the design information will be displayed. Proceed to step 3.
  2. Click Yes or Yes to All.
    The output wizard of the design information (Input Basic Information page) will be displayed. Note that the processing will differ as follows depending upon whether the deployment definition is performed (public) or not performed (private) for the service or user-defined reception being edited:
    When deployment definition is performed for a service or user-defined reception
    If deployment definition is performed for a service or user-defined reception, set to a state in which deployment definition is not performed. Subsequently, save the service or user-defined reception being edited and proceed with the processing.
    When deployment definition is not performed for the service or user-defined reception
    Save the service or user-defined reception being edited and proceed with the processing.

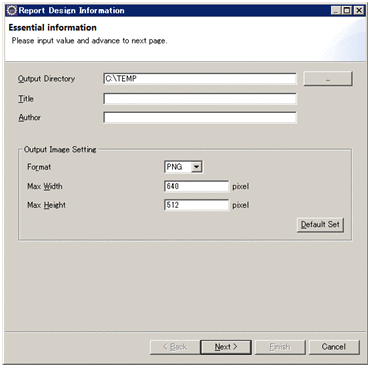

  3. Set up the required information, such as the output destination directory, in the output wizard of the design information (Input Basic Information page):

    [Figure]

    Output destination directory
    Specify the directory to output the design information. When you specify the output destination of the design information, consider the following points:
    - Specify a location containing no directories or files as the output destination. If the specified directory contains a directory or a file with the same name, that directory or file will be overwritten. If the number of business processes is different, unnecessary image files will remain.
    - Specify the path as an absolute path.
    - Specify a path of 239 bytes or lesser with the character code MS932.
    - When an error occurs after the output of the design information is started and the output processing is interrupted, directories or files will remain until the time of interruption.
    Title
    Specify the character string to be output as the title of the design information.
    Note that you can use the following character codes as the character strings to be specified in the title:
    U+0009, U+0020-U+D7FF, U+E000-U+FFFD, U+10000-U+10FFFF.
    You can also use a tab (U+0009), single-byte blank (U+0020), and double-byte blank (U+3000) only between the characters.
    Created by
    Specify a character string to be output as the name of the creator who created the design information.
    Note that you can use the following character codes as the character strings to be specified as the name of the creator:
    U+0009, U+0020-U+D7FF, U+E000-U+FFFD, U+10000-U+10FFFF.
    You can also use a tab (U+0009), single-byte blank (U+0020), and double-byte blank (U+3000) only between the characters
    Format
    Specify the format of the output image of the activity of the activity placement figure. Choose from the PNG format, BMP format, and JPEG format.
    Maximum width
    Specify the maximum width of the output image. You can specify a value within the range from 250 to 2500.
    When you exceed the maximum width specified for the width size of the output image, reduce the output image while maintaining the ratio between the width and height so as to fit within the maximum width.
    Maximum height
    Specify the maximum height of the output image. You can specify a value within the range from 200 to 2000.
    When you exceed the maximum height specified for the height size of the output image, reduce the output image while maintaining the ratio between the width and height so as to fit within the maximum height.
  4. Click the Next button.
    The Design Information Output Wizard (Select Service page) appears.

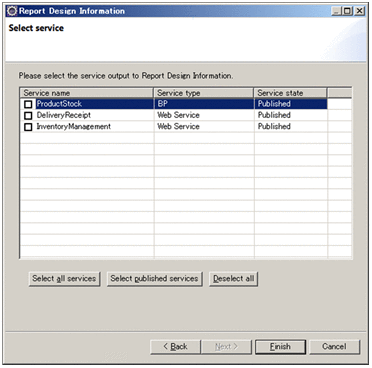

  5. In the Design Information Output Wizard (Select Service page), select the check box of the service that will be output as the design information.

    [Figure]

  6. Click Finish.
    The output processing status of the design information is displayed in a dialog box.
    When the output processing finishes, the processing results are displayed in the dialog box, and the design information is output in the output destination directory.
