uCosminexus Application Server, Maintenance and Migration Guide
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-154 Details of the trace collection points in the JMS messages, producer, consumer, and queue browser
Event ID | Number in the figure# | Trace collection point | Level |
---|---|---|---|
0xA65C | 1 | When the processing of MessageProducer.send(msg) starts | A |
0xA65D | 4 | When the processing of MessageProducer.send(msg) ends | A |
0xA65E | 1 | When the processing of MessageProducer.send(msg,deliveryMode,priority,timeToLive) starts | A |
0xA65F | 4 | When the processing of MessageProducer.send(msg,deliveryMode,priority,timeToLive) ends | A |
0xA660 | 1 | When the processing of MessageProducer.send(destination,msg) starts | A |
0xA661 | 4 | When the processing of MessageProducer.send(destination,msg) ends | A |
0xA662 | 1 | When the processing of MessageProducer.send(destination,msg,deliveryMode,priority,timeToLive) starts | A |
0xA663 | 4 | When the processing of MessageProducer.send(destination,msg,deliveryMode,priority,timeToLive) ends | A |
0xA664 | 9 | When the processing of MessageProducer.close() starts | A |
0xA665 | 10 | When the processing of MessageProducer.close() ends | A |
0xA666 | 5 | When the processing of MessageConsumer.receive() starts | A |
0xA667 | 8 | When the processing of MessageConsumer.receive() ends | A |
0xA61A | 5 | When the processing of MessageConsumer.receive(timeout) starts | A |
0xA61B | 8 | When the processing of MessageConsumer.receive(timeout) ends | A |
0xA668 | 5 | When the processing of MessageConsumer.receiveNoWait() starts | A |
0xA669 | 8 | When the processing of MessageConsumer.receiveNoWait() ends | A |
0xA66A | 9 | When the processing of MessageConsumer.close() starts | A |
0xA66B | 10 | When the processing of MessageConsumel.close() ends | A |
0xA66C | 11 | When the processing of QueueBrowser.getEnumeration() starts | A |
0xA66D | 14 | When the processing of QueueBrowser.getEnumeration() ends | A |
0xA66E | 15 | When the processing of Message.acknowledge() starts | A |
0xA66F | 18 | When the processing of Message.acknowledge() ends | A |
0xA670 | 2 | Invocation by CJMSP Broker immediately before invoking the writing of the JMS messages | A |
0xA671 | 3 | Invocation by CJMSP Broker just after invoking the writing of the JMS messages | A |
0xA672 | 6 | Invocation by CJMSP Broker immediately before invoking the receiving of the JMS messages | A |
0xA673 | 7 | Invocation by CJMSP Broker just after invoking the receiving of the JMS messages | A |
0xA674 | 12 | Invocation by CJMSP Broker immediately before invoking the delivery of all the JMS messages | A |
0xA675 | 13 | Invocation by CJMSP Broker just after invoking the delivery of all the JMS messages | A |
0xA676 | 16 | Invocation by CJMSP Broker immediately before invoking the authentication of the JMS messages | A |
0xA677 | 17 | Invocation by CJMSP Broker just after invoking the authentication of the JMS messages | A |

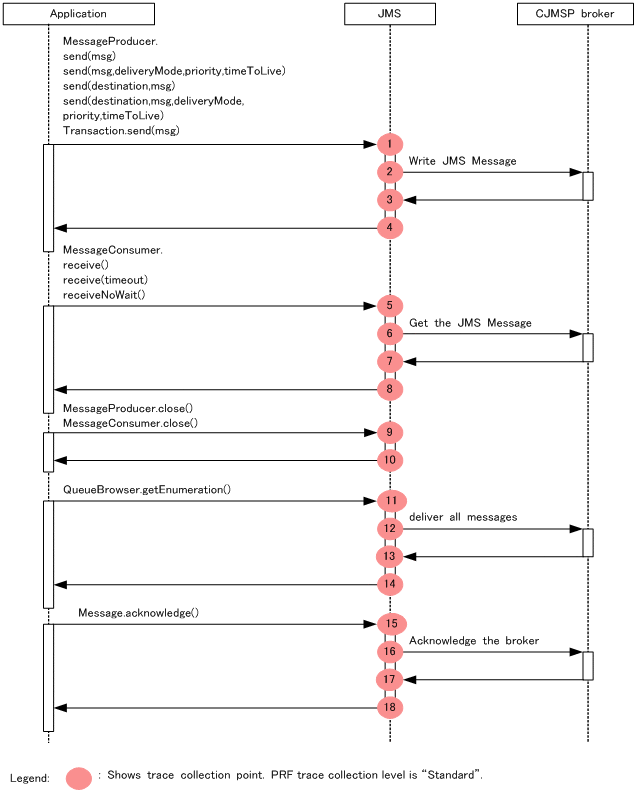

The following figure shows the trace collection points in the JMS messages, producer, consumer, and queue browser.
Figure 8-96 Trace collection points of the JMS messages, producer, consumer, and queue browser
The following table describes the trace information that can be collected for the JMS messages, producer, consumer, and queue browser.
Table 8-155 Trace information that can be collected for the JMS messages, producer, consumer, and queue browser
Number in the figure# | Event ID | Level | Information that can be collected | ||
---|---|---|---|---|---|
Interface name | Operation name | Option | |||
1 | 0xA65C | A | Destination name | N | N |
0xA65E | A | Priority | |||
0xA660 | A | N | |||
0xA662 | A | Priority | |||
2 | 0xA670 | A | N | N | N |
3 | 0xA671 | A | N | N | N |
4 | 0xA65D | A | N | N | N |
0xA65F | A | ||||
0xA661 | A | ||||
0xA663 | A | ||||
5 | 0xA666 | A | Destination name | 0 | N |
0xA61A | A | Timeout | |||
0xA668 | A | N | |||
6 | 0xA672 | A | N | N | N |
7 | 0xA673 | A | N | N | N |
8 | 0xA667 | A | N | N | N |
0xA61B | A | ||||
0xA669 | A | ||||
9 | 0xA664 | A | N | N | N |
0xA66A | A | ||||
10 | 0xA665 | A | N | N | N |
0xA66B | A | ||||
11 | 0xA66C | A | N | N | N |
12 | 0xA674 | A | N | N | N |
13 | 0xA675 | A | N | N | N |
14 | 0xA66D | A | N | N | N |
15 | 0xA66E | A | N | N | N |
16 | 0xA676 | A | N | N | N |
17 | 0xA677 | A | N | N | N |
18 | 0xA66F | A | N | N | N |
