The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-152 Details of trace collection points in the JMS session interface
Event ID | Number in the figure# | Trace collection point | Level |
---|---|---|---|
0xA61E | 5 | When the processing of Session.createSubscriber(topic) starts | A |
0xA61F | 8 | When the processing of Session.createSubscriber(topic) ends | A |
0xA620 | 1 | When the processing of Session.createBrowser(queue) starts | A |
0xA621 | 4 | When the processing of Session.createBrowser(queue) ends | A |
0xA622 | 1 | When the processing of Session.createBrowser(queue,selector) starts | A |
0xA623 | 4 | When the processing of Session.createBrowser(queue,selector) ends | A |
0xA624 | 5 | When the processing of Session.createSubscriber(topic,selector,noLocal) starts | A |
0xA625 | 8 | When the processing of Session.createSubscriber(topic,selector,noLocal) ends | A |
0xA626 | 5 | When the processing of Session.createDurableSubscriber(topic,name) starts | A |
0xA627 | 8 | When the processing of Session.createDurableSubscriber(topic,name) ends | A |
0xA628 | 5 | When the processing of Session.createDurableSubscriber(topic,name,selector,noLocal) starts | A |
0xA629 | 8 | When the processing of Session.createDurableSubscriber(topic,name,selector,noLocal) ends | A |
0xA62A | 5 | When the processing of Session.createConsumer(destination) starts | A |
0xA62B | 8 | When the processing of Session.createConsumer(destination) ends | A |
0xA62C | 5 | When the processing of Session.createConsumer(destination,selector) starts | A |
0xA62D | 8 | When the processing of Session.createConsumer(destination,selector) ends | A |
0xA62E | 5 | When the processing of Session.createConsumer(destination,selector,noLocal) starts | A |
0xA62F | 8 | When the processing of Session.createConsumer(destination,selector,noLocal) ends | A |
0xA630 | 5 | When the processing of Session.createReceiver(queue) starts | A |
0xA631 | 8 | When the processing of Session.createReceiver(queue) ends | A |
0xA632 | 5 | When the processing of Session.createReceiver(queue,selector) starts | A |
0xA633 | 8 | When the processing of Session.createReceiver(queue,selector) ends | A |
0xA634 | 9 | When the processing of Session.createPublisher(topic) starts | A |
0xA635 | 12 | When the processing of Session.createPublisher(topic) ends | A |
0xA636 | 9 | When the processing of Session.createProducer(destination) starts | A |
0xA637 | 12 | When the processing of Session.createProducer(destination) ends | A |
0xA638 | 9 | When the processing of Session.createSender(queue) starts | A |
0xA639 | 12 | When the processing of Session.createSender(queue) ends | A |
0xA63A | 13 | When the processing of Session.createQueue() starts | A |
0xA63B | 16 | When the processing of Session.createQueue() ends | A |
0xA63C | 13 | When the processing of Session.createTopic() starts | A |
0xA63D | 16 | When the processing of Session.createTopic() ends | A |
0xA63E | 13 | When the processing of Session.createTemporaryQueue() starts | A |
0xA63F | 16 | When the processing of Session.createTemporaryQueue() ends | A |
0xA640 | 13 | When the processing of Session.createTemporaryTopic() starts | A |
0xA641 | 16 | When the processing of Session.createTemporaryTopic() ends | A |
0xA642 | 17 | When the processing of Session.unsubscribe() starts | A |
0xA643 | 20 | When the processing of Session.unsubscribe() ends | A |
0xA644 | 21 | When the processing of Session.commit() starts | A |
0xA645 | 24 | When the processing of Session.commit() ends | A |
0xA646 | 21 | When the processing of Session.rollback() starts | A |
0xA647 | 24 | When the processing of Session.rollback() ends | A |
0xA648 | 25 | When the processing of Session.recover() starts | A |
0xA649 | 26 | When the processing of Session.recover() ends | A |
0xA64A | 25 | When the processing of Session.close() starts | A |
0xA64B | 26 | When the processing of Session.close() ends | A |
0xA64C | 2 | Invocation by CJMSP Broker immediately before invoking destination authentication for the browser | A |
0xA64D | 3 | Invocation by CJMSP Broker just after invoking destination authentication for the browser | A |
0xA64E | 6 | Invocation by CJMSP Broker immediately before invoking consumer | A |
0xA64F | 7 | Invocation by CJMSP Broker just after invoking consumer | A |
0xA650 | 10 | Invocation by CJMSP Broker immediately before invoking producer | A |
0xA651 | 11 | Invocation by CJMSP Broker just after invoking producer | A |
0xA652 | 14 | Invocation by CJMSP Broker immediately before invoking create destination | A |
0xA653 | 15 | Invocation by CJMSP Broker just after invoking create destination | A |
0xA654 | 18 | Invocation by CJMSP Broker immediately before invoking create persistence subscriber | A |
0xA655 | 19 | Invocation by CJMSP Broker just after invoking create persistence subscriber | A |
0xA656 | 22 | Invocation by CJMSP Broker immediately before invoking session commit | A |
0xA657 | 23 | Invocation by CJMSP Broker just after invoking session commit | A |
0xA658 | 22 | Invocation by CJMSP Broker immediately before invoking session rollback | A |
0xA659 | 23 | Invocation by CJMSP Broker just after invoking session rollback | A |
0xA65A | 22 | Invocation by CJMSP Broker immediately before invoking session recovery | A |
0xA65B | 23 | Invocation by CJMSP Broker just after invoking session recovery | A |
The event IDs are output when XATransaction is used.

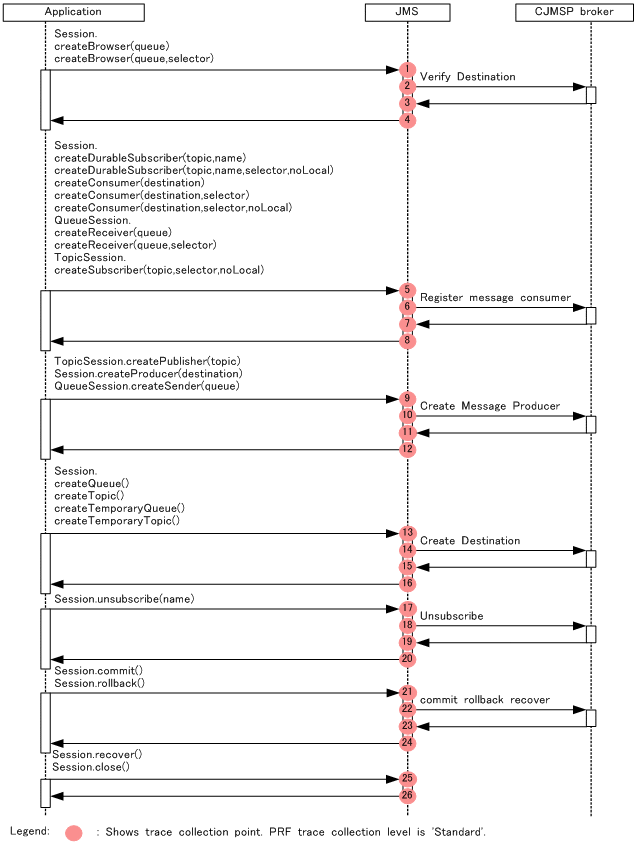

The following figure shows the trace collection points in the JMS session interface.
Figure 8-95 Trace collection points in the JMS session interface
The following table describes the trace information that can be collected for the JMS session interface.
Table 8-153 Trace information that can be collected for the JMS session interface
Number in the figure# | Event ID | Level | Information that can be collected | ||
---|---|---|---|---|---|
Interface name | Operation name | Option | |||
1 | 0xA620 | A | Queue name | N | N |
0xA622 | A | Selector string | |||
2 | 0xA64C | A | N | N | N |
3 | 0xA64D | A | N | N | N |
4 | 0xA621 | A | N | N | N |
0xA623 | A | ||||
5 | 0xA61E | A | Topic name | N | N |
0xA624 | A | Selector string | |||
0xA626 | A | N | |||
0xA628 | A | Selector string | |||
0xA62A | A | Destination name | N | ||
0xA62C | A | Selector string | |||
0xA62E | A | ||||
0xA630 | A | Queue name | N | ||
0xA632 | A | Selector string | |||
6 | 0xA64E | A | N | N | N |
7 | 0xA64F | A | N | N | N |
8 | 0xA61F | A | N | N | N |
0xA625 | A | ||||
0xA627 | A | ||||
0xA629 | A | ||||
0xA62B | A | ||||
0xA62D | A | ||||
0xA62F | A | ||||
0xA631 | A | ||||
0xA633 | A | ||||
9 | 0xA634 | A | Topic name | N | N |
0xA636 | A | Destination name | N | N | |
0xA638 | A | Queue name | N | N | |
10 | 0xA650 | A | N | N | N |
11 | 0xA651 | A | N | N | N |
12 | 0xA635 | A | N | N | N |
0xA637 | A | ||||
0xA639 | A | ||||
13 | 0xA63A | A | Queue name | N | N |
0xA63C | A | Topic name | N | N | |
0xA63E | A | N | N | N | |
0xA640 | A | ||||
14 | 0xA652 | A | N | N | N |
15 | 0xA653 | A | N | N | N |
16 | 0xA63B | A | N | N | N |
0xA63D | A | ||||
0xA63F | A | ||||
0xA641 | A | ||||
17 | 0xA642 | A | N | N | N |
18 | 0xA654 | A | N | N | N |
19 | 0xA655 | A | N | N | N |
20 | 0xA643 | A | N | N | N |
21 | 0xA644 | A | N | N | N |
0xA646 | A | ||||
0xA648 | A | ||||
22 | 0xA656 | A | N | N | N |
0xA658 | A | ||||
0xA65A | A | ||||
23 | 0xA657 | A | N | N | N |
0xA659 | A | ||||
0xA65B | A | ||||
24 | 0xA645 | A | N | N | N |
0xA647 | A | ||||
0xA649 | A | ||||
25 | 0xA64A | A | N | N | N |
26 | 0xA64B | A | N | N | N |
