uCosminexus Application Server, Maintenance and Migration Guide
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-141 Details of trace collection points during transaction linkage with the transaction manager
Event ID | No. in the figure#1 | Trace acquisition points | Level |
---|---|---|---|
0xA39E | 1 | Immediately before the process for correlating the persistent context and transaction starts | B |
0xA39F | 2 | Immediately after the process for correlating the persistent context and transaction is complete | B |
0xA3A0 | 3 | Immediately before the pre-processing of the JTA transaction conclusion starts | B |
0xA3A1 | 4 | Immediately after the pre-processing of the JTA transaction conclusion ends | B |
0xA3A2 | 5 | Immediately before the post-processing of the JTA transaction conclusion starts | B |
0xA3A3 | 6 | Immediately after the post-processing of the JTA transaction conclusion ends | B |
The following figure shows the trace collection points.

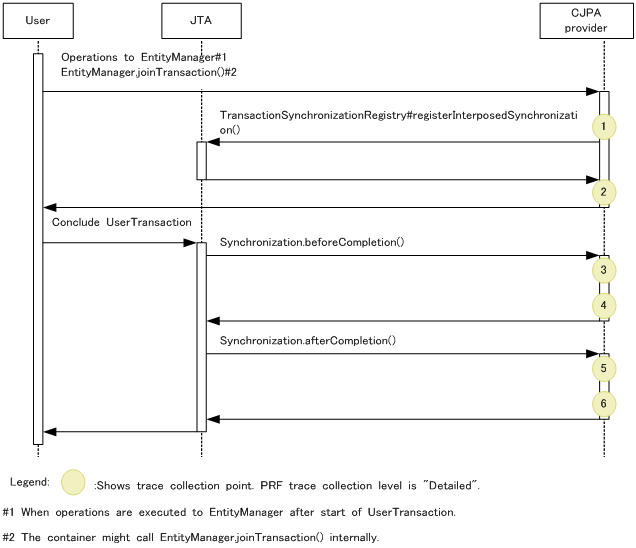

Figure 8-84 Trace collection points during transaction linkage with the transaction manager
The following table describes the trace information that can be collected during transaction linkage with the transaction manager.
Table 8-142 Trace information that can be collected during transaction linkage with the transaction manager
No. in the figure#1 | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1 | 0xA39E | B | -- | -- | -- |
2 | 0xA39F | B | -- | -- | #2 |
3 | 0xA3A0 | B | -- | -- | -- |
4 | 0xA3A1 | B | -- | -- | #2 |
5 | 0xA3A2 | B | -- | Status (int value of javax.transaction.Status) of the transaction passed by an argument of afterCompletion() | -- |
6 | 0xA3A3 | B | -- | -- | #2 |
