uCosminexus Application Server, Maintenance and Migration Guide
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-139 Details of trace collection points during the binary conversion of the entity class
Event ID | No. in the figure#1 | Trace acquisition points | Level |
---|---|---|---|
0xA330 | 1 | Immediately before the binary conversion processing for the entity class starts | B |
0xA331 | 2 | Immediately after the binary conversion processing for the entity class is complete | B |
The following figure shows the trace collection points.

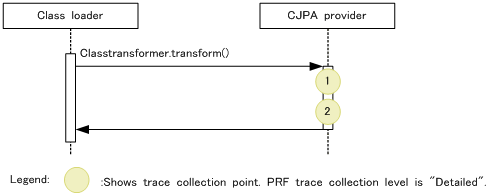

Figure 8-83 Trace collection points during binary conversion of the entity class
The following table describes the trace information that can be collected during the binary conversion of the entity class.
Table 8-140 Trace information that can be collected during the binary conversion of the entity class
No. in the figure#1 | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1 | 0xA330 | B | -- | -- | -- |
2 | 0xA331 | B | -- | -- | #2 |
