The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-137 Details of trace collection points in the case of callback method to the user
Event ID | No. in the figure#1 | Trace acquisition points | Level |
---|---|---|---|
0xA390 | 1 | Immediately before invoking the PrePersist() callback method | A |
0xA391 | 2 | Immediately after returning from the PrePersist() callback method | A |
0xA392 | 1 | Immediately before invoking the PostPersist() callback method | A |
0xA393 | 2 | Immediately after returning from the PostPersist() callback method | A |
0xA394 | 1 | Immediately before invoking the PreRemove() callback method | A |
0xA395 | 2 | Immediately after returning from the PreRemove() callback method | A |
0xA396 | 1 | Immediately before invoking the PostRemove() callback method | A |
0xA397 | 2 | Immediately after returning from the PostRemove() callback method | A |
0xA398 | 1 | Immediately before invoking the PreUpdate() callback method | A |
0xA399 | 2 | Immediately after returning from the PreUpdate() callback method | A |
0xA39A | 1 | Immediately before invoking the PostUpdate() callback method | A |
0xA39B | 2 | Immediately after returning from the PostUpdate() callback method | A |
0xA39C | 1 | Immediately before invoking the PostLoad() callback method | A |
0xA39D | 2 | Immediately after returning from the PostLoad() callback method | A |

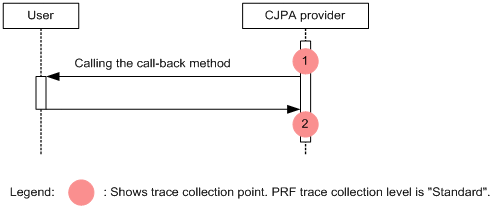

The following figure shows the trace collection points.
Figure 8-82 Trace collection points of the callback method to the user
The following table describes the trace information that can be collected in the case of the callback method to the user.
Table 8-138 Trace information that can be collected in the case of the callback method to the user
No. in the figure#1 | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1 | 0xA390 | A | Callback method name specified by the user | -- | -- |
0xA392 | A | -- | -- | ||
0xA394 | A | -- | -- | ||
0xA396 | A | -- | -- | ||
0xA398 | A | -- | -- | ||
0xA39A | A | -- | -- | ||
0xA39C | A | -- | -- | ||
2 | 0xA391 | A | Callback method name specified by the user | -- | #2 |
0xA393 | A | -- | #2 | ||
0xA395 | A | -- | #2 | ||
0xA397 | A | -- | #2 | ||
0xA399 | A | -- | #2 | ||
0xA39B | A | -- | #2 | ||
0xA39D | A | -- | #2 |
