uCosminexus Application Server, Maintenance and Migration Guide
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-135 Details of trace collection points during the operation of EntityTransaction
Event ID | No. in the figure#1 | Trace acquisition points | Level |
---|---|---|---|
0xA310#2 | 3 | When the processing of EntityTransaction#begin() starts | B |
0xA311#2 | 4 | When the processing of EntityTransaction#begin() ends | B |
0xA312#2 | 5 | When the processing of EntityTransaction#commit() starts | B |
0xA313#2 | 6 | When the processing of EntityTransaction#commit() ends | B |
0xA314#2 | 5 | When the processing of EntityTransaction#rollback() starts | B |
0xA315#2 | 6 | When the processing of EntityTransaction#rollback() ends | B |
0xA362#3 | 1 | When the processing of EntityManager#getTransaction() starts | B |
0xA363#3 | 2 | When the processing of EntityManager#getTransaction() ends | B |
The following figure shows the trace collection points.

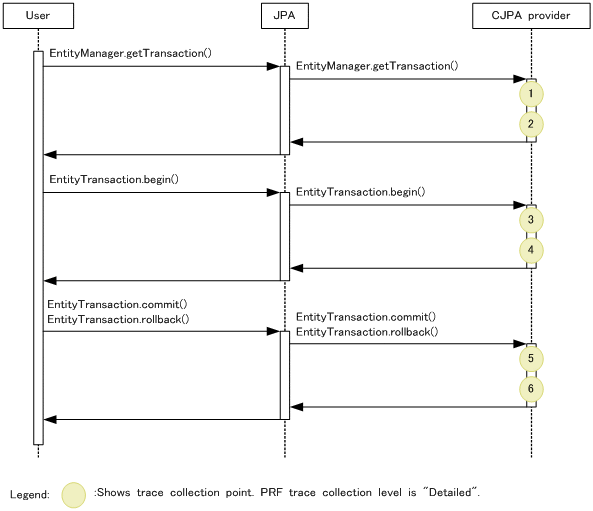

Figure 8-81 Trace collection points for the operation of EntityTransaction
The following table describes the trace information that can be collected during the operation of EntityTransaction.
Table 8-136 Trace information that can be collected during the operation of EntityTransaction
No. in the figure#1 | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1#2 | 0xA362 | B | -- | -- | -- |
2#2 | 0xA363 | B | -- | -- | #3 |
3#4 | 0xA310 | B | -- | -- | -- |
4#4 | 0xA311 | B | -- | -- | #3 |
5#4 | 0xA312 | B | -- | -- | -- |
0xA314 | B | -- | -- | -- | |
6#4 | 0xA313 | B | -- | -- | #3 |
0xA315 | B | -- | -- | #3 |
