The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-133 Details of trace collection points of the Query operation
| Event ID | No. in the figure# | Trace acquisition points | Level |
|---|---|---|---|
| 0xA354#2 | 1 | When the processing of EntityManager#createQuery(String) starts | B |
| 0xA355#2 | 2 | When the processing of EntityManager#createQuery(String) ends | B |
| 0xA356#2 | 1 | When the processing of EntityManager#createNamedQuery(String) starts | B |
| 0xA357#2 | 2 | When the processing of EntityManager#createNamedQuery(String) ends | B |
| 0xA358#2 | 1 | When the processing of EntityManager#createNativeQuery(String) starts | B |
| 0xA359#2 | 2 | When the processing of EntityManager#createNativeQuery(String) ends | B |
| 0xA35A#2 | 1 | When the processing of EntityManager#createNativeQuery(String, Class) starts | B |
| 0xA35B#2 | 2 | When the processing of EntityManager#createNativeQuery(String, Class) ends | B |
| 0xA35C#2 | 1 | When the processing of EntityManager#createNativeQuery(String, String) starts | B |
| 0xA35D#2 | 2 | When the processing of EntityManager#createNativeQuery(String, String) ends | B |
| 0xA370#3 | 5 | When the processing of Query#getResultList() starts | B |
| 0xA371#3 | 6 | When the processing of Query#getResultList() ends | B |
| 0xA372#3 | 5 | When the processing of Query#getSingleResult() starts | B |
| 0xA373#3 | 6 | When the processing of Query#getSingleResult() ends | B |
| 0xA374#3 | 5 | When the processing of Query#executeUpdate() starts | B |
| 0xA375#3 | 6 | When the processing of Query#executeUpdate() ends | B |
| 0xA376#3 | 3 | When the processing of Query#setParameter(String, Object) starts | B |
| 0xA377#3 | 4 | When the processing of Query#setParameter(String, Object) ends | B |
| 0xA378#3 | 3 | When the processing of Query#setParameter(String, Date, TemporalType) starts | B |
| 0xA379#3 | 4 | When the processing of Query#setParameter(String, Date, TemporalType) ends | B |
| 0xA37A#3 | 3 | When the processing of Query#setParameter(String, Calendar, TemporalType) starts | B |
| 0xA37B#3 | 4 | When the processing of Query#setParameter(String, Calendar, TemporalType) ends | B |
| 0xA37C#3 | 3 | When the processing of Query#setParameter(int, Object) starts | B |
| 0xA37D#3 | 4 | When the processing of Query#setParameter(int, Object) ends | B |
| 0xA37E#3 | 3 | When the processing of Query#setParameter(int, Date, TemporalType) starts | B |
| 0xA37F#3 | 4 | When the processing of Query#setParameter(int, Date, TemporalType) ends | B |
| 0xA380#3 | 3 | When the processing of Query#setParameter(int, Calendar, TemporalType) starts | B |
| 0xA381#3 | 4 | When the processing of Query#setParameter(int, Calendar, TemporalType) ends | B |
The following figure shows the trace collection points.

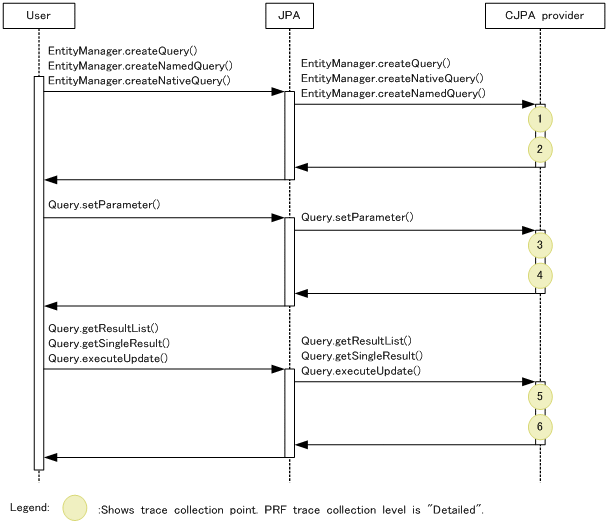

Figure 8-80 Trace collection points of the Query operation
![[Figure]](FIGURE/ZU076300.GIF)
The following table describes the trace information that can be collected during the Query operation.
Table 8-134 Trace information that can be collected during the Query operation
| No. in the figure#1 | Event ID | Level | Information that you can acquire | ||
|---|---|---|---|---|---|
| Interface name | Operation name | Optional | |||
| 1#2 | 0xA354 | B | -- | -- | -- |
| 0xA356 | B | -- | -- | -- | |
| 0xA358 | B | -- | -- | -- | |
| 0xA35A | B | -- | -- | -- | |
| 0xA35C | B | -- | -- | -- | |
| 2#2 | 0xA355 | B | -- | -- | #3 |
| 0xA357 | B | -- | -- | #3 | |
| 0xA359 | B | -- | -- | #3 | |
| 0xA35B | B | -- | -- | #3 | |
| 0xA35D | B | -- | -- | #3 | |
| 3#4 | 0xA376 | B | -- | -- | -- |
| 0xA378 | B | -- | -- | -- | |
| 0xA37A | B | -- | -- | -- | |
| 0xA37C | B | -- | -- | -- | |
| 0xA37E | B | -- | -- | -- | |
| 0xA380 | B | -- | -- | -- | |
| 4#4 | 0xA377 | B | -- | -- | #3 |
| 0xA379 | B | -- | -- | #3 | |
| 0xA37B | B | -- | -- | #3 | |
| 0xA37D | B | -- | -- | #3 | |
| 0xA37F | B | -- | -- | #3 | |
| 0xA381 | B | -- | -- | #3 | |
| 5#4 | 0xA370 | B | -- | -- | -- |
| 0xA372 | B | -- | -- | -- | |
| 0xA374 | B | -- | -- | -- | |
| 6#4 | 0xA371 | B | -- | -- | #3 |
| 0xA373 | B | -- | -- | #3 | |
| 0xA375 | B | -- | -- | #3 | |
