The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-143 Details of trace collection points during the connection operation of the DB Connector
| Event ID | No. in the figure# | Trace acquisition points | Level |
|---|---|---|---|
| 0xA3A4 | 1 | Immediately before invoking DataSource#getConnection() | B |
| 0xA3A5 | 2 | Immediately after returning from DataSource#getConnection() | B |
| 0xA3A6 | 1 | Immediately before invoking DataSource#getConnection(String, String) | B |
| 0xA3A7 | 2 | Immediately after returning from DataSource#getConnection(String, String) | B |
| 0xA3A8 | 1 | Immediately before invoking DriverManager#getConnection(String, Properties) | B |
| 0xA3A9 | 2 | Immediately after returning from DriverManager#getConnection(String, Properties) | B |
| 0xA3AA | 1 | Immediately before invoking DriverManager#getConnection(String, String, String) | B |
| 0xA3AB | 2 | Immediately after returning from DriverManager#getConnection(String, String, String) | B |
| 0xA3AC | 9 | Immediately before invoking Connection#close() | B |
| 0xA3AD | 10 | Immediately after returning from Connection#close() | B |
| 0xA3AE | 7 | Immediately before invoking Connection#commit() | B |
| 0xA3AF | 8 | Immediately after returning from Connection#commit() | B |
| 0xA3B0 | 3 | Immediately before invoking Connection#createStatement() | B |
| 0xA3B1 | 4 | Immediately after returning from Connection#createStatement() | B |
| 0xA3B2 | 3 | Immediately before invoking Connection#prepareCall(String) | B |
| 0xA3B3 | 4 | Immediately after returning from Connection#prepareCall(String) | B |
| 0xA3B4 | 3 | Immediately before invoking Connection#prepareCall(String, int, int) | B |
| 0xA3B5 | 4 | Immediately after returning from Connection#prepareCall(String, int, int) | B |
| 0xA3B6 | 3 | Immediately before invoking Connection#prepareStatement(String) | B |
| 0xA3B7 | 4 | Immediately after returning from Connection#prepareStatement(String) | B |
| 0xA3B8 | 3 | Immediately before invoking Connection#prepareStatement(String, int, int) | B |
| 0xA3B9 | 4 | Immediately after returning from Connection#prepareStatement(String , int, int) | B |
| 0xA3BA | 7 | Immediately before invoking Connection#rollback() | B |
| 0xA3BB | 8 | Immediately after returning from Connection#rollback() | B |
| 0xA3BC | 5 | Immediately before invoking Statement#executeQuery(String) | B |
| 0xA3BD | 6 | Immediately after returning from Statement#executeQuery(String) | B |
| 0xA3BE | 5 | Immediately before invoking Statement#executeUpdate(String) | B |
| 0xA3BF | 6 | Immediately after returning from Statement#executeUpdate(String) | B |
| 0xA3C0 | 5 | Immediately before invoking PreparedStatemen#executeUpdate() | B |
| 0xA3C1 | 6 | Immediately after returning from PreparedStatemen#executeUpdate() | B |
| 0xA3C2 | 5 | Immediately before invoking PreparedStatemen#executeQuery() | B |
| 0xA3C3 | 6 | Immediately after returning from PreparedStatemen#executeQuery() | B |
The following figure shows the trace collection points.

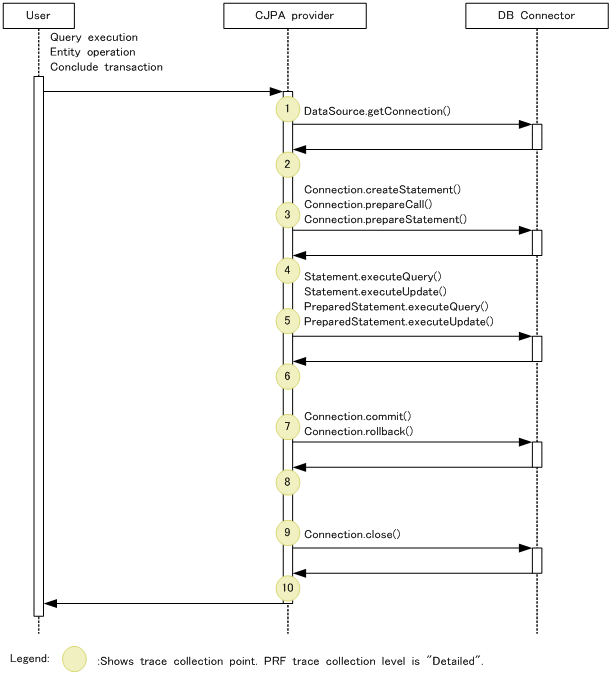

Figure 8-85 Trace collection points during the connection operation of the DB Connector
![[Figure]](FIGURE/ZU076800.GIF)
The following table describes the trace information that can be collected during the connection operation of the DB Connector.
Table 8-144 Trace information that can be collected during the connection operation of the DB Connector
| No. in the figure#1 | Event ID | Level | Information that you can acquire | ||
|---|---|---|---|---|---|
| Interface name | Operation name | Optional | |||
| 1 | 0xA3A4 | B | -- | -- | -- |
| 0xA3A6 | B | -- | -- | -- | |
| 0xA3A8 | B | -- | -- | -- | |
| 0xA3AA | B | -- | -- | -- | |
| 2 | 0xA3A5 | B | -- | -- | #2 |
| 0xA3A7 | B | -- | -- | #2 | |
| 0xA3A9 | B | -- | -- | #2 | |
| 0xA3AB | B | -- | -- | #2 | |
| 3 | 0xA3B0 | B | -- | -- | -- |
| 0xA3B2 | B | -- | -- | -- | |
| 0xA3B4 | B | -- | -- | -- | |
| 0xA3B6 | B | -- | -- | -- | |
| 0xA3B8 | B | -- | -- | -- | |
| 4 | 0xA3B1 | B | -- | -- | #2 |
| 0xA3B3 | B | -- | -- | #2 | |
| 0xA3B5 | B | -- | -- | #2 | |
| 0xA3B7 | B | -- | -- | #2 | |
| 0xA3B9 | B | -- | -- | #2 | |
| 5 | 0xA3BC | B | -- | -- | -- |
| 0xA3BE | B | -- | -- | -- | |
| 0xA3C0 | B | -- | -- | -- | |
| 0xA3C2 | B | -- | -- | -- | |
| 6 | 0xA3BD | B | -- | -- | #2 |
| 0xA3BF | B | -- | -- | #2 | |
| 0xA3C1 | B | -- | -- | #2 | |
| 0xA3C3 | B | -- | -- | #2 | |
| 7 | 0xA3AE | B | -- | -- | -- |
| 0xA3BA | B | -- | -- | -- | |
| 8 | 0xA3AF | B | -- | -- | #2 |
| 0xA3BB | B | -- | -- | #2 | |
| 9 | 0xA3AC | B | -- | -- | -- |
| 10 | 0xA3AD | B | -- | -- | #2 |
