This subsection describes the trace collection points and the trace information that can be collected when a connection association is used.
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-95 Details of trace collection points in a DB Connector and JCA container (when the processing of a connection association is executed)
Event ID | No. in the figure# | Trace acquisition points | Level |
---|---|---|---|
0x8C40 | 1 | When a logical connection is replaced with a physical connection with the connection association functionality | A |
The following figure shows the trace collection points.

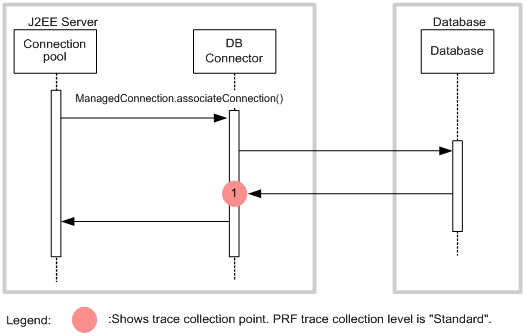

Figure 8-54 Details of trace collection points in a DB Connector and JCA container (connection association-related)
The following table describes the trace information that can be collected.
Table 8-96 Details of trace collection points in a DB Connector and JCA container (when the connection association processing is executed)
No. in the figure# | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1 | 0x8C40 | A | Connection ID (connection ID of the physical connection that replaces another connection with the connection association functionality) | -- | -- |
