This subsection describes the trace collection points and the trace information that can be collected when the connection closes automatically.
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-97 Details of trace collection points in a DB Connector and JCA container (when the connection closes automatically)
| Event ID | No. in the figure# | Trace acquisition points | Level |
|---|---|---|---|
| 0x8B84 | 1 | Immediately after the invocation of the close processing by the automatic connection close functionality | B |
| 0x8B82 | 2 | Immediately before the invocation of physical connection discard | B |
| 0x8B83 | 3 | Immediately after the return of physical connection discard | B |
| 0x8B85 | 4 | Immediately before the return of the close processing by the automatic connection close functionality | B |

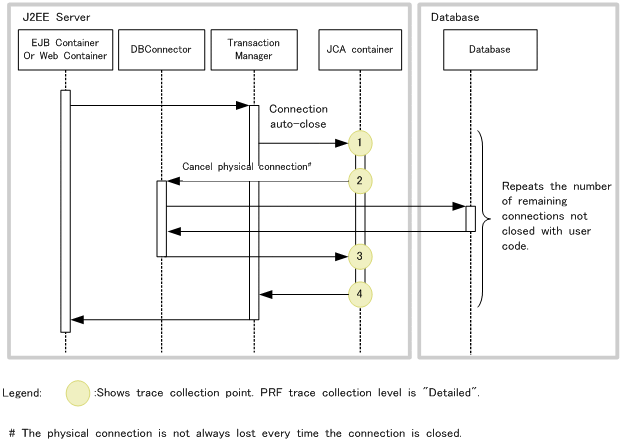

The following figure shows the trace collection points.
Figure 8-55 Details of trace collection points in a DB Connector and JCA container (when the connection closes automatically)
![[Figure]](FIGURE/ZU073300.GIF)
The following table describes the trace information that can be collected.
Table 8-98 Details of trace collection points in a DB Connector and JCA container (when the connection closes automatically)
| No. in the figure# | Event ID | Level | Information that you can acquire | ||
|---|---|---|---|---|---|
| Interface name | Operation name | Optional | |||
| 1 | 0x8B84 | B | Connection ID | -- | -- |
| 2 | 0x8B82 | B | -- | -- | -- |
| 3 | 0x8B83 | B | -- | -- |
|
| 4 | 0x8B85 | B | -- | -- | Entrance time |
