This subsection describes the trace collection points and the trace information that can be collected when a local transaction is used.
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-93 Details of trace collection points in a DB Connector and JCA container (when the processing of a local transaction is executed)
| Event ID | No. in the figure# | Trace acquisition points | Level | |
|---|---|---|---|---|
| 0x8C60 | 1 | When a local transaction starts | When the processing starts | B |
| 0x8C61 | 2 | When the processing ends | B | |
| 0x8C62 | 3 | When the local transaction is committed | When the processing starts | B |
| 0x8C63 | 4 | When the processing ends | B | |
| 0x8C64 | 3 | When the local transaction rolls back | When the processing starts | B |
| 0x8C65 | 4 | When the processing ends | B | |
The following figure shows the trace collection points.

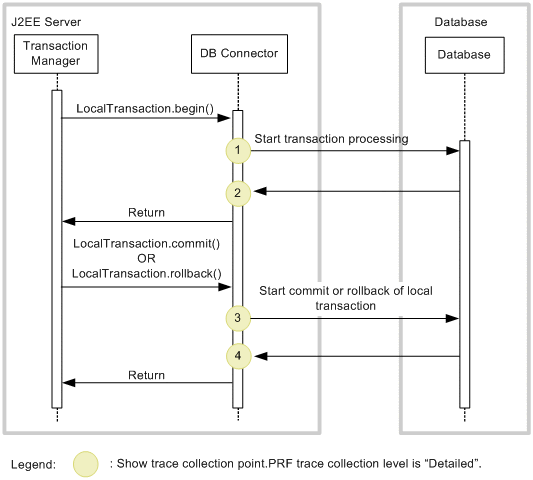

Figure 8-53 Details of trace collection points in a DB Connector and JCA container (local transaction-related)
![[Figure]](FIGURE/ZU073100.GIF)
The following table describes the trace information that can be collected.
Table 8-94 Details of trace collection points in a DB Connector and JCA container (when the processing of a local transaction is executed)
| No. in the figure# | Event ID | Level | Information that you can acquire | ||
|---|---|---|---|---|---|
| Interface name | Operation name | Optional | |||
| 1 | 0x8C60 | B | -- | -- | -- |
| 2 | 0x8C61 | B | -- | -- |
|
| 3 | 0x8C62 | B | -- | -- | -- |
| 0x8C64 | B | -- | -- | -- | |
| 4 | 0x8C63 | B | -- | -- |
|
| 0x8C65 | B | -- | -- | ||
