The USER_CLT.LOG file is output in the following format:

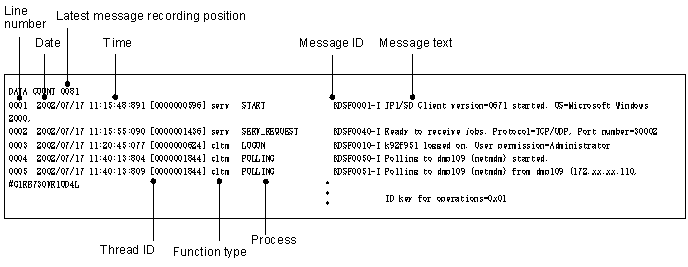

Figure 7-1 Format of the USER_CLT.LOG file

Line 1 of the USER_CLT.LOG file indicates the line number of the line containing the latest message, and messages are displayed in line 2 and subsequent lines. You should reference the date, time, message ID, and message text to check the operation of the client. In line 2 and beyond, for some items the output position (column) is fixed. The following output positions apply:

• Line number: columns 0-3
• Date: columns 6-15
• Time (hour, minute, second, millisecond): columns 17-28
• Thread ID: columns 30-41
• Function type: columns 43-50
• Processing: columns 52-67
• Message ID: columns 69-78
• Message text: columns 80-189

When the client's OS is Windows 8, Windows Server 2012, Windows 7, Windows Server 2008, or Windows Vista, the output positions for the items are as follows:

• Line number: columns 0-3
• Date: columns 5-14
• Time (hour, minute, second, millisecond): columns 16-27
• Thread ID: columns 29-52
• Function type: columns 54-61
• Processing: columns 63-78
• Message ID: columns 80-89
• Message text: columns 91-189
