This page is used to specify information about the events that are sent to JP1/IM using JP1/Base's event service facility. If you select the Enable the event service check box, the results of jobs executed in JP1/Software Distribution and errors that occur in JP1/Software Distribution Manager are reported to JP1/IM as JP1 events. You can also report alert information sent from clients to JP1/IM as JP1 events. The default is that this check box is not selected.
JP1/Software Distribution Manager can report execution results to JP1/IM for the following jobs:
- Install package jobs
- Transfer package to relay system jobs
- Collect files from client jobs
- Collect files from client to relay system jobs
- Acquire collected files from relay system jobs
- Send package, allow client to choose jobs
For these jobs, JP1 Software Distribution Manager can also report the job execution results in detailed units called instructions. An instruction is the smallest unit of a job created in JP1/Software Distribution Manager and is created for each destination or distributed software. For example, if you have a job that distributes two software programs to two destinations, four instructions are created for the job.
When JP1/Software Distribution Manager is used with a cluster configuration, events are transferred to the physical host's event service.

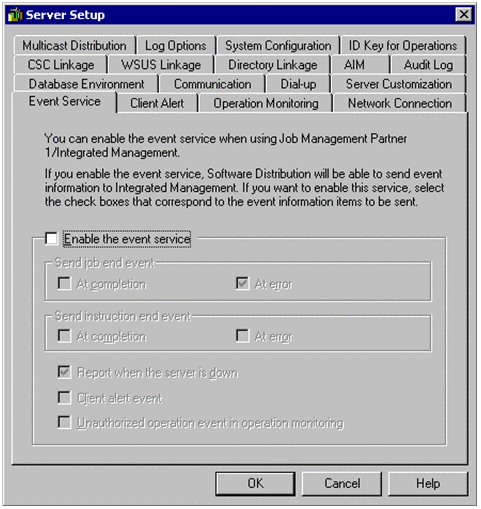

Figure 4-14 Event Service page
![[Figure]](FIGURE/MSE0120.GIF)
- Send job end event
- Select one of the following check boxes to report job execution results to JP1/IM:
- At completion
- JP1/Software Distribution Manager reports job execution results when all jobs to all destinations are completed.
- At error
- JP1/Software Distribution Manager reports job execution results only if an error occurs.
- Send instruction end event
- Select one of the following check boxes to report job execution results in instruction units for jobs executed in JP1/Software Distribution:
- At completion
- JP1/Software Distribution Manager reports job execution results when all instructions are completed.
- At error
- JP1/Software Distribution Manager reports job execution results only if an instruction error occurs.
- Report when the server is down
- JP1/Software Distribution Manager sends this event when an error occurs in JP1/Software Distribution Manager.
- Client alert event
- JP1/Software Distribution Manager sends this event to JP1/IM when alert information is sent from clients.
- Unauthorized operation event in operation monitoring
- If the client performs one of the following unauthorized operations, JP1/Software Distribution Manager notifies JP1/IM.
- Connecting to a device whose operation is suppressed
- Starting suppressed software
- Performing a print operation from a client where print operations are suppressed
