4.2.10 OpenView Linkage page

Set up the OpenView gateway server that is needed in order to use OpenView Linkage. OpenView Linkage enables you to view JP1/Software Distribution inventory from HP NNM version 7.5 or earlier.

To update the settings on the OpenView Linkage page, after completing setup of JP1/Software Distribution Manager, open Control Panel, choose Administrative Tools, Services, and then restart the Remote Installation Gateway Server service in addition to the Remote Install Server service.

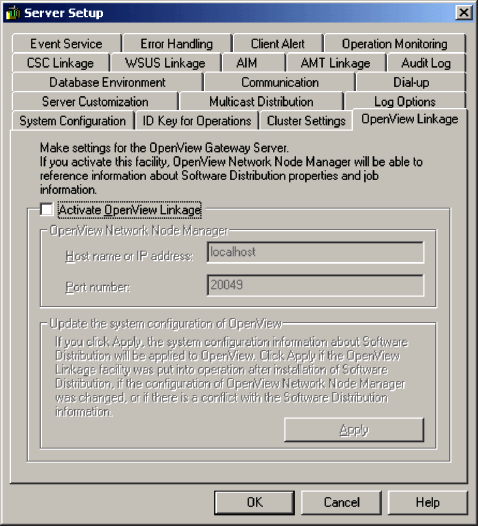

Figure 4-13 OpenView Linkage page

[Figure]

Organization of this subsection
(1) Activate OpenView Linkage
(2) Update the system configuration of OpenView

(1) Activate OpenView Linkage

Select whether or not you wish to use OpenView Linkage. The default is that this check box is not selected. To use OpenView Linkage, specify the host name or IP address of HP NNM, and the port number.

(2) Update the system configuration of OpenView

Specify whether or not system configuration information about JP1/Software Distribution is to be applied to HP NNM in batch processing. Click the Apply button if you wish to add OpenView Linkage to the existing JP1/Software Distribution environment after starting JP1/Software Distribution operation or if you wish to add the system configuration information of the hierarchy structure from a relay manager in JP1/Software Distribution 06-53 or a later version.
