3.1.6 Selecting the components
Select the components or subcomponents you wish to install. In the case of an upgrade, you can add components or subcomponents, but you cannot delete any installed components or subcomponents. The components displayed for Relay System are different from those for Client.
- Organization of this subsection
- (1) Components displayed for Relay system
- (2) Components displayed for Client
(1) Components displayed for Relay system

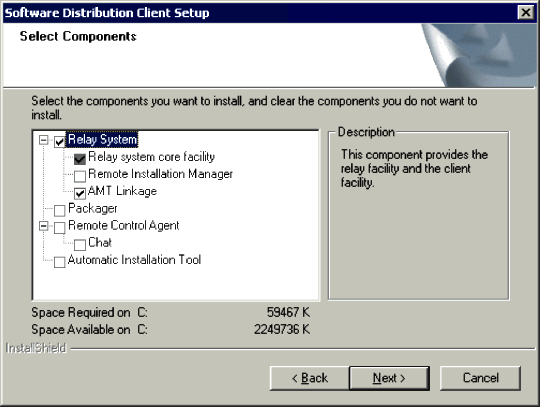

Figure 3-6 Select Components dialog box (for relay system)
![[Figure]](FIGURE/CIN0055.GIF)
The subcomponents are displayed in a tree hierarchy under the component name.
You should note the following about selecting components:
- If you select Relay system core facility, Client is installed unconditionally.
- To select Remote Installation Manager under Relay System, you must select Relay System.
(2) Components displayed for Client

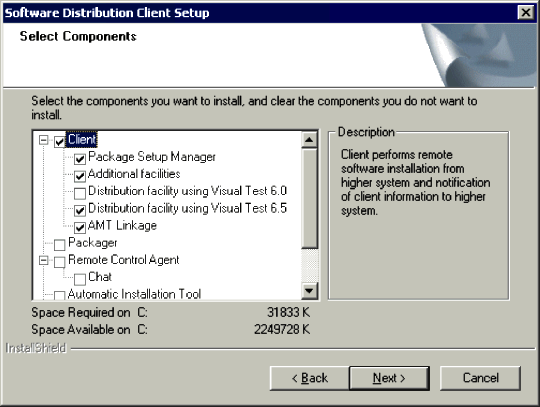

Figure 3-7 Select Components dialog box (for client)
![[Figure]](FIGURE/CIN0050.GIF)
The subcomponents are displayed in a tree hierarchy under the component name.
You should note the following about selecting components:
- To select the subcomponents of Client, you must select Client.
- You cannot install only online Help.
- You cannot install the Remote Control Agent of JP1/Software Distribution Client on a PC where JP1/Remote Control Agent has been installed. If you wish to install the Remote Control Agent of JP1/Software Distribution Client, you must uninstall JP1/Remote Control Agent and then install the Remote Control Agent.
- You can install only one of the following: Distribution facility using Visual Test 6.0 or Distribution facility using Visual Test 6.5. Select the facility that corresponds to the version of Visual Test used in the environment in which you want to install JP1/Software Distribution Client.
- If you are installing JP1/Software Distribution Client (client) in a Windows XP Mode environment, some components will not be available. For more information about components that can be used, see C.1 Notes on installation and setup of JP1/Software Distribution Client (client) in a Windows XP Mode environment.
