When you are installing OpenView Linkage, the Software Distribution Manager OpenView Linkage Setup dialog box is displayed. This subsection describes the settings. For details about how to install OpenView Linkage, see 2.5 Installing JP1/Software Distribution Manager in HP Network Node Manager.
Specify the host name or IP address of the JP1/Software Distribution Manager to which HP NNM version 7.5 or earlier is to connect.
You can change this setting during setup.

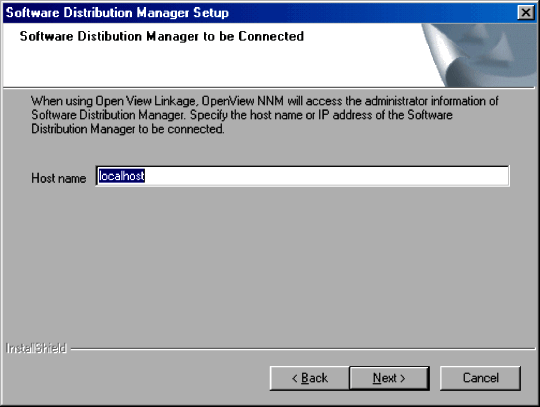

Figure 2-29 Software Distribution Manager to be Connected dialog box
![[Figure]](FIGURE/MIN0250.GIF)
HP NNM accesses the management information of the specified JP1/Software Distribution Manager. Note that OpenView Gateway Server must be installed on the connection-destination JP1/Software Distribution Manager.
Specify the port number to be used by HP NNM version 7.5 or earlier to establish connection with JP1/Software Distribution Manager.
You can change this setting during setup.

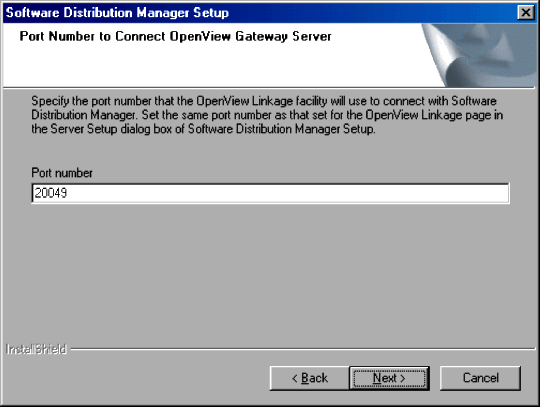

Figure 2-30 Port Number to Connect OpenView Gateway Server dialog box
![[Figure]](FIGURE/MIN0260.GIF)
For Port number, specify the port number that has been specified on the OpenView Linkage tab of the Server Setup dialog box in the JP1/Software Distribution Manager setup. This port number is used when HP NNM accesses the management information of the JP1/Software Distribution Manager. The default is 20049.
