This frame sets the operation options to be initially displayed in the operation confirmation frame.
The following figure shows the frame for setting the default operation options:
Figure 6-24 Frame for setting the default operation options
- Organization of this subsection
- (1) Default settings for operation options (Rerun)
- (2) Default settings for operation options (Execute Immediately)
- (3) Default settings for operation options (Change Time)
- (4) Default settings for operation options (Change Delay Monitor)
- (5) Default settings for operation options (Change Job Status)
- (6) Apply button
- (7) Default button

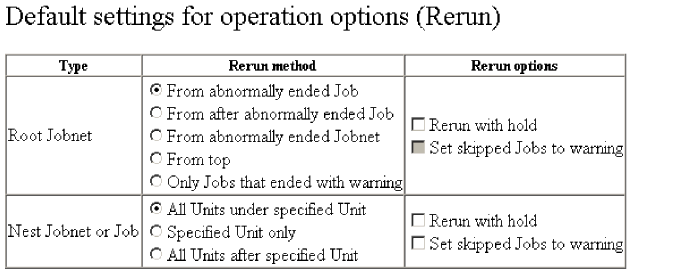

(1) Default settings for operation options (Rerun)
The following setting items are displayed only when the Rerun button is set to be displayed in the display settings for the operation buttons (see 4.2.3 (3) Display settings for the operation buttons). If the Rerun button is not set to be displayed, the following message appears:
Since the Rerun button is set as hidden, setting of operation options cannot be performed.
(a) Root Jobnet
Specify the method for rerunning the root jobnet and the rerun option. Select the following radio buttons to specify the rerun method:
- From abnormally ended Job
- From after abnormally ended Job
- From abnormally ended Jobnet
- From top
- Only Jobs that ended with warning
Select the rerun options from the following check boxes:
- Rerun with hold
- Set skipped Jobs to warning
(b) Nest Jobnet or Job
Specify the method for rerunning the nest jobnets or jobs and the rerun option. Select the following radio buttons to specify the rerun method:
- All Units under specified Unit
- Specified Unit only
- All Units after specified Unit
Select the rerun options from the following check boxes:
- Rerun with hold
- Set skipped Jobs to warning

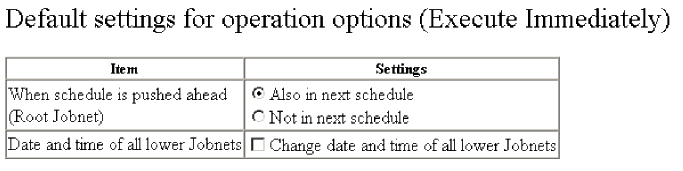

(2) Default settings for operation options (Execute Immediately)
The following setting items are displayed only when the Execute Immediately button is set to be displayed in the display settings for the operation buttons (see 4.2.3 (3) Display settings for the operation buttons). If the Execute Immediately button is not set to be displayed, the following message appears:
Since the Execute Immediately button is set as hidden, setting of operation options cannot be performed.
(a) When schedule is pushed ahead (Root Jobnet)
Select the following radio buttons to specify the items to be initially displayed as the handling of the root jobnet when the schedule is moved up:
- Also in next schedule
- Not in next schedule
(b) Date and time of all lower Jobnets
Specify whether or not the Change date and time of all lower Jobnets check box is to be selected in the initial display.

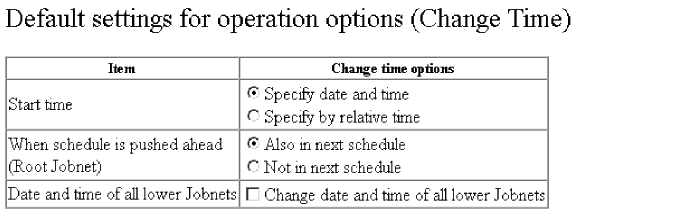

(3) Default settings for operation options (Change Time)
The following setting items are displayed only when the Change Time button is set to be displayed in the display settings for the operation buttons (see 4.2.3 (3) Display settings for the operation buttons). If the Change Time button is not set to be displayed, the following message appears:
Since the Change Time button is set as hidden, setting of operation options cannot be performed.
(a) Start time
Use either of the following radio buttons to set the method of specifying the start time:
- Specify date and time
- Specify by relative time
(b) When schedule is pushed ahead (Root Jobnet)
Select the following radio buttons to specify the items to be initially displayed as the handling of the root jobnet when the schedule is moved up:
- Also in next schedule
- Not in next schedule
(c) Date and time of all lower Jobnets
Specify whether or not the Change date and time of all lower Jobnets check box is to be selected in the initial display.

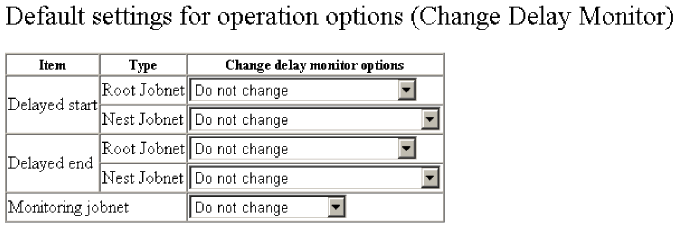

(4) Default settings for operation options (Change Delay Monitor)
The following setting items are displayed only when the Change Delay Monitor button is set to be displayed in the display settings for the operation buttons (see 4.2.3 (3) Display settings for the operation buttons). If the Change Delay Monitor button is not set to be displayed, the following message appears:
Since the Change Delay Monitor button is set as hidden, setting of operation options cannot be performed.
(a) Delayed start
Specify the items to be initially displayed as the method for monitoring a delayed start for the root jobnet and nested jobnets.
- Root Jobnet
Select one of the following options to be initially displayed as the job status after the method for monitoring a delayed start for the root jobnet is changed:
- Do not change
- Do not monitor
- Absolute time
- Relative from start of the jobnet
- Nest Jobnet
Select one of the following options to be initially displayed as the job status after the method of monitoring a delayed start for nested jobnets is changed:
- Do not change
- Do not monitor
- Absolute time
- Relative from start of root jobnet
- Relative from start of upper-l jobnet
- Relative from start of the jobnet
(b) Delayed end
Specify the items to be initially displayed as the method of monitoring a delayed end for the root jobnet and nested jobnets.
- Root Jobnet
Select one of the following options to be initially displayed as the job status after the method of monitoring a delayed end for the root jobnet is changed:
- Do not change
- Do not monitor
- Absolute time
- Relative from start of the jobnet
- Nest Jobnet
Select one of the following options to be initially displayed as the job status after the method of monitoring a delayed end for nested jobnets is changed:
- Do not change
- Do not monitor
- Absolute time
- Relative from start of root jobnet
- Relative from start of upper-l jobnet
- Relative from start of the jobnet
(c) Monitoring jobnet
Select one of the following options to be initially displayed as the method of monitoring a delayed end according to the required execution time of the jobnet:
- Do not change
- Do not monitor
- Required exec. time

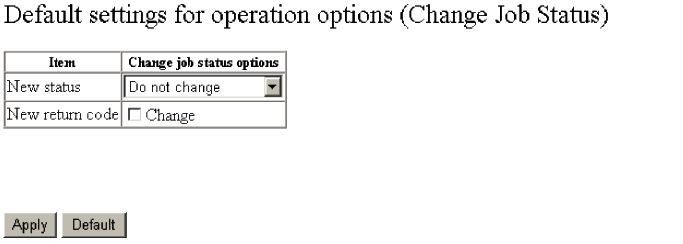

(5) Default settings for operation options (Change Job Status)
The following setting items are displayed only when the Change Job Status button is set to be displayed in the display settings for the operation buttons (see 4.2.3 (3) Display settings for the operation buttons). If the Change Job Status button is not set to be displayed, the following message appears:
Since the Change Job Status button is set as hidden, setting of operation options cannot be performed.
(a) New status
Select one of the following options to be initially displayed as the new job status after the job status has been changed:
- Do not change
- Ended normally
- Failed to start
- Ended with warning
- Ended abnormally
- Bypassed
- Judge by return code
(b) New return code
Specify whether the Change check box is to be selected in the initial display for the return code of the new job after the job status has been changed.
(6) Apply button
Clicking this button saves the settings displayed in the frame.
The changes in the settings take effect when you return to the Monitor window by clicking the Return to Status View hyperlink in the item selection frame or when you log on next time.
This button is not displayed when none of the following default settings are displayed: default settings for operation options (Rerun), default settings for operation options (Execute Immediately), default settings for operation options (Change Time), default settings for operation options (Change Delay Monitor), and default settings for operation options (Change Job Status).
(7) Default button
Clicking this button returns the settings displayed in the frame to the defaults (for details about the defaults, see 4.3 Environment settings changeable in the User Environment Settings window). Clicking this button just change the displayed settings, and does not save them. Click the Apply button to save the settings.
This button is not displayed when none of the following settings are displayed: default settings for operation options (Rerun), default settings for operation options (Execute Immediately), default settings for operation options (Change Time), default settings for operation options (Change Delay Monitor), and default settings for operation options (Change Job Status).
