6.4.8 Settings frame (Auto refresh)

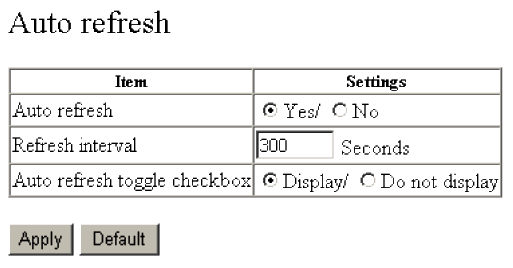

The following figure shows the frame for setting the auto refresh.

Figure 6-25 Settings frame

Organization of this subsection

(1) Auto refresh

(2) Refresh interval

(3) Auto refresh toggle check box

(4) Apply button

(5) Default button

(1) Auto refresh

Specify whether or not to automatically update the contents of the statuses frame and operation results frame on a regular basis.

(2) Refresh interval

Specify the interval at which the auto refresh is performed for the statuses frame and operation results frame. You can specify a value from 30 to 3,600 (unit: second).

(3) Auto refresh toggle check box

Specify whether or not to display the Stop auto refresh check box for togging the display of the auto refresh in the statuses frame.

However, even if you specify Display, the Stop auto refresh check box will not be displayed if you specify No for Auto refresh.

(4) Apply button

Clicking this button saves the settings displayed in the frame.

The changes in the settings take effect when you return to the Monitor window by clicking the Return to Status View hyperlink in the item selection frame or when you log on next time.

(5) Default button

Clicking this button returns the settings displayed in the frame to the defaults (for details about the defaults, see 4.3 Environment settings changeable in the User Environment Settings window). Clicking this button just changes the displayed settings, and does not save them. Click the Apply button to save the settings.
