15.9.4 Monitor Details - [icon-name] dialog box

The Monitor Details - [icon-name] dialog box displays detailed information on the status and results of the execution for the selected unit (except jobnets, remote jobnets, and jobnet connectors). For details about the Monitor Details - [Jobnet] dialog box, the Monitor Details - [Remote Jobnet] dialog box, and Monitor Details - [Jobnet Connector] dialog box, see 15.3.34 Monitor Details - [Jobnet] dialog box.

The following figure shows the Monitor Details - [icon-name] dialog box.

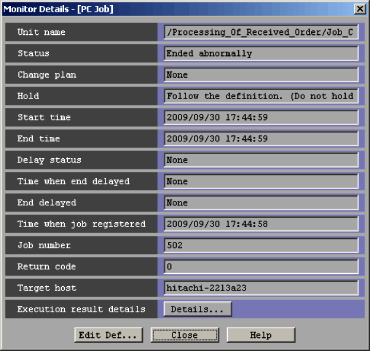

Figure 15-191 Monitor Details - [icon-name] dialog box

The following explains the displayed items.

Unit name

Displays the full name of a unit.

Status

Displays the status of the unit.

Change plan

Displays whether any plan in the unit has been changed temporarily.

Hold

Displays whether to hold the execution of the unit.

Start time

Displays the start time of the execution of the unit.

End time

Displays the end time of the execution of the unit.

Delay status

Displays the delay status of the unit.

Time when end delayed

Displays the date and time from which to start monitoring of delayed end.

Monitoring of delayed end based on time required for execution starts after the specified number of days and hours from the start time. Therefore, the date and time from which to start detecting an end delay is determined when a job starts to be executed.

End delayed

Displays whether end delay has occurred.

Time when job registered

Displays the time when the job was registered for execution.

Job number

Displays a job number.

Return code

Displays a job return code. For details about the return code of a job, see 7.8.3 Checking the return code of a job in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

Target host

Displays the name of the host in which the unit was executed actually.

Execution result details

If you click Details button, the Execution Result Details dialog box appears.

For more information, see 15.3.35 Execution Result Details dialog box.

Edit Def button

Displays the Define Details - [icon-name] dialog box that defines the details of the unit. For details, see 15.3 JP1/AJS3 - View window or 15.4 Jobnet Editor window.
