Job Management Partner 1/Automatic Job Management System 3 Operator's Guide
The following figure shows the windows and dialog boxes displayed from the Jobnet Monitor window.

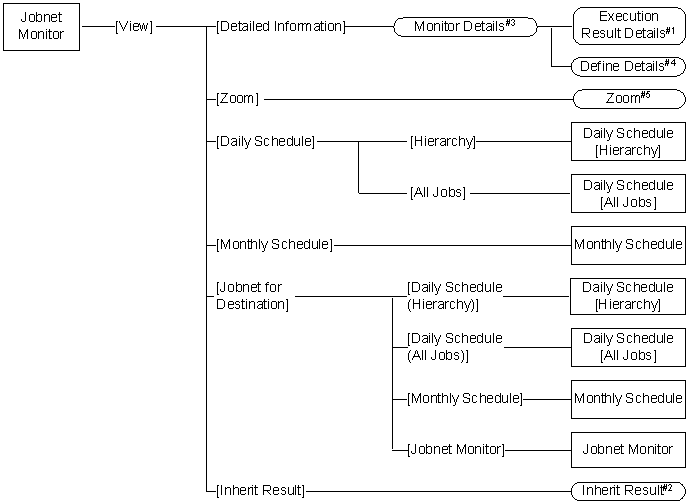

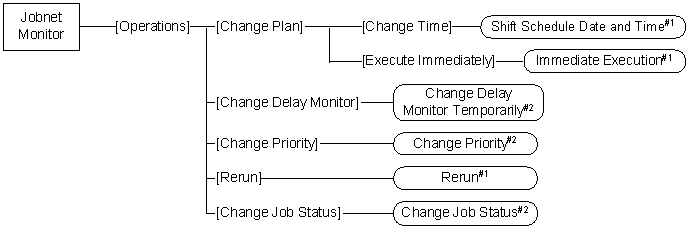

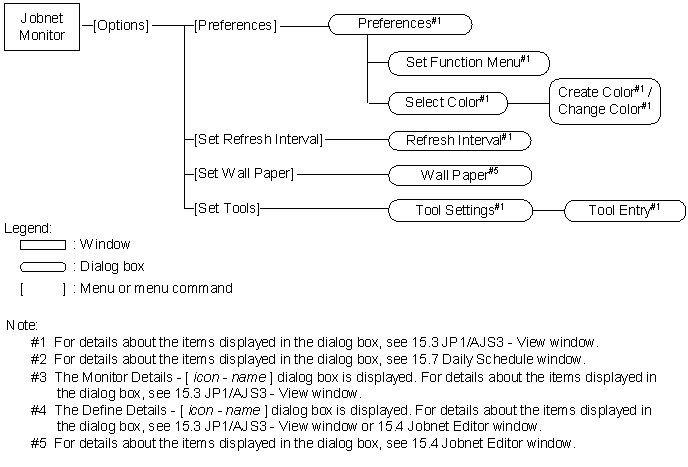

Figure 15-190 Windows and dialog boxes displayed from the Jobnet Monitor window
Copyright (C) 2009, 2010, Hitachi, Ltd.
Copyright (C) 2009, 2010, Hitachi Solutions, Ltd.
![[Figure]](FIGURE/ZV142110.GIF)
![[Figure]](FIGURE/ZV142120.GIF)
![[Figure]](FIGURE/ZV142130.GIF)
![[Figure]](FIGURE/ZV142140.GIF)
